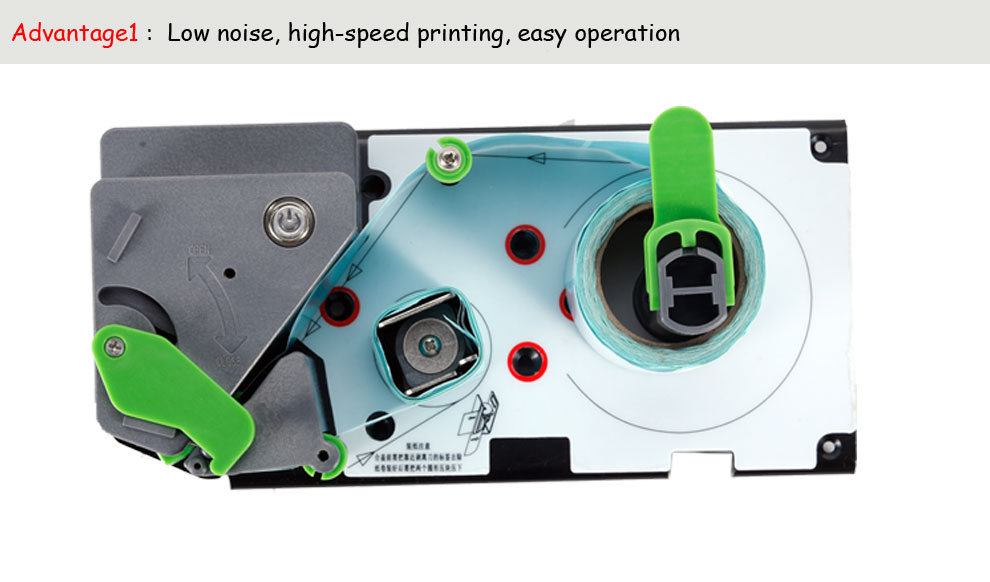

· Low noise, high speed printing
· Double large motor design, stable and reliable structure
· One button for multiple purposes, easy man-machine operation
· Easy to use and maintain

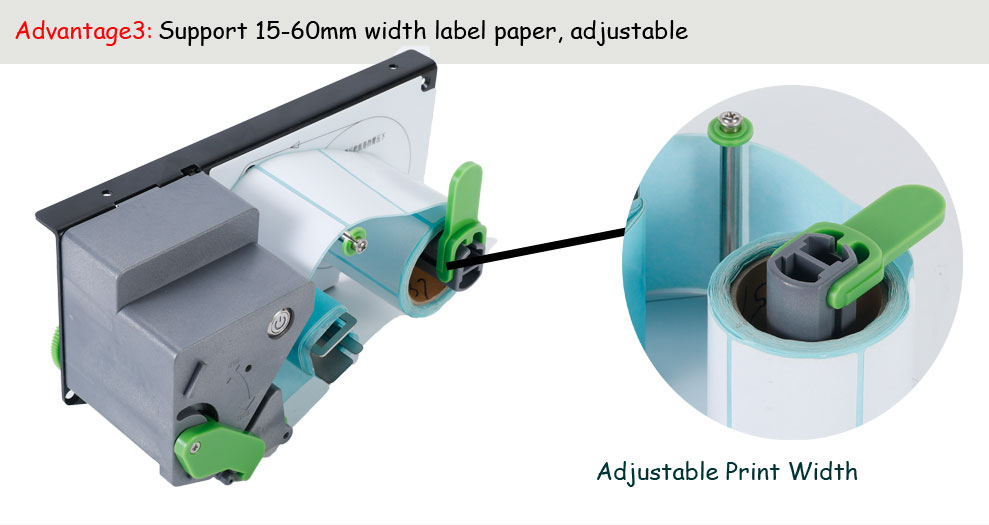

· Supports multiple label widths

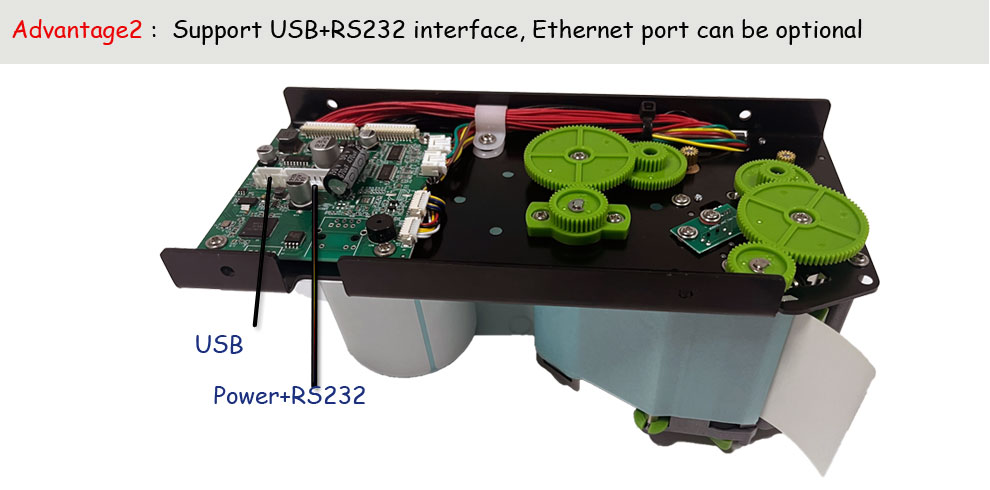

· Support USB port, serial port, Ethernet communication mode

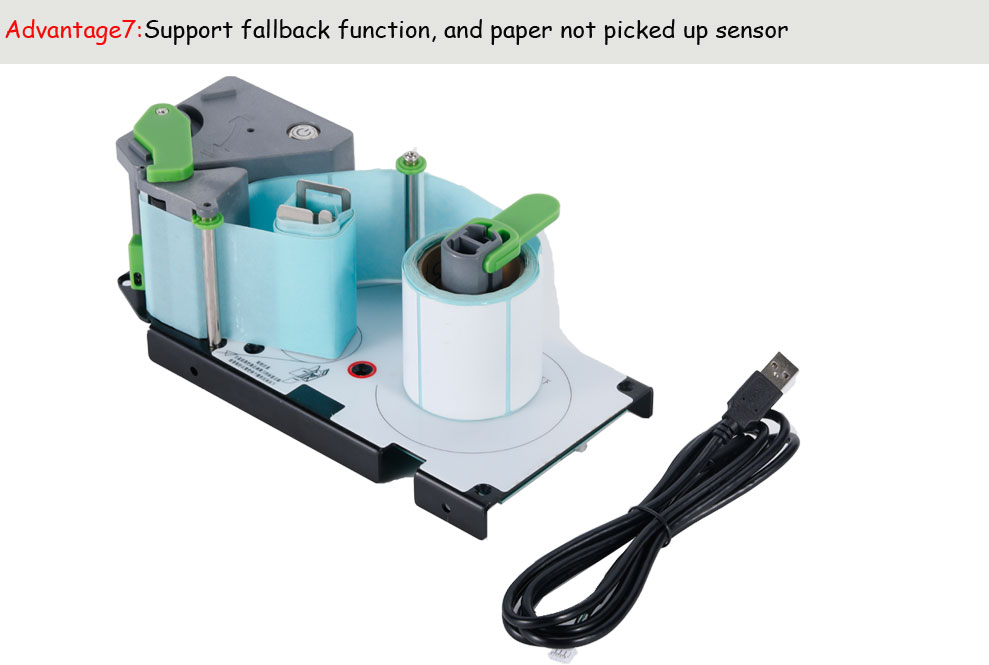

· Support paper removal, cover opening and closing, and near-end detection

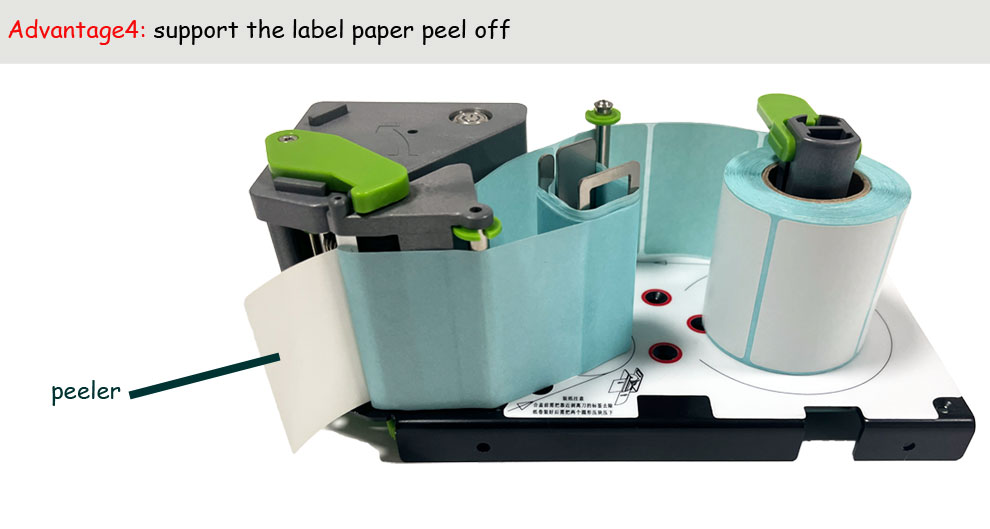

· 2inch print width with peeler

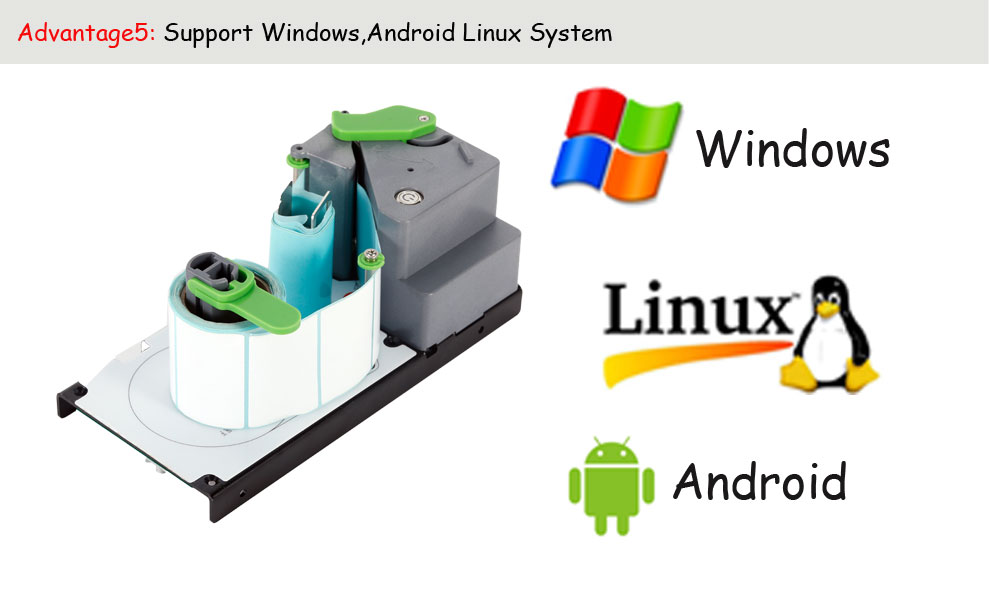

· With android, windows, linux sdk
· Support win11/win10/win8/win7/xp
· Support ESC/POS（Receipt）、CPCL、TSPL、JPL（Label）Command

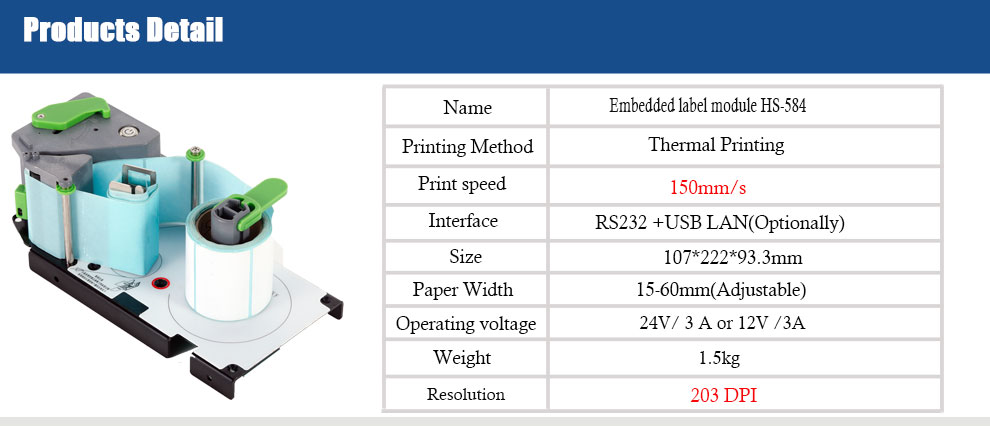

Printing | Printing Method | Thermal Line |
Printing Speed | Max150mm/s | |
Resolution | 8 dots/mm, 203DPI | |
Effective Printing Width | 56mm | |
Character | Character Set | ASCII, GB18030(Chinese), |
Print Font | Codepage, ASCII 12×24, 24×24 | |
Paper Spec | Paper Type | Thermal label paper ,Black Papepr |
Paper Thickness | 0.08~0.2mm | |
Paper Width | 60mm | |
Paper roll diameter | Max 100mm | |
Paper core inner diameter | MIN.25mm | |
Barcode | 1D: UPC-A, UPC-EEAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 | |
Emulation | ESC/POS（Receip）、CPCL、TSPL、JPL（Label） | |
Driver | Win11/Win10/2000/NT/XP/Vista/Win7/Win8/Linux/Andriod | |
Interface | RS-232/USB. OR USB AND LAN | |
RAM | FLASH 4M | |
Paper Supply Method | Manual loading | |
Power Supply | DC24V±10%, 3A or DC12v 3A | |
size | 107*222*93.3mm | |
Weight | 1.05kg | |
Environment | Operating Temp | 0~ 50 °C |
Operating Humidity | 10%~80% | |
