80mm Thermal Label Printer

HS-3200 is Desktop Thermal Label Printer support 20mm--82mm label paper, Support TSPL, ZPL, EPL, DPL multiple command sets; with free android and windows free software. Support Big paper roller
Product detailsPosition:Home >Products > Product details
  • Description

    Maximum printing speed 5 inch/sec;

    Support TSPL, ZPL, EPL, DPL multiple command sets;

    Support different sizes of thermal label paper;

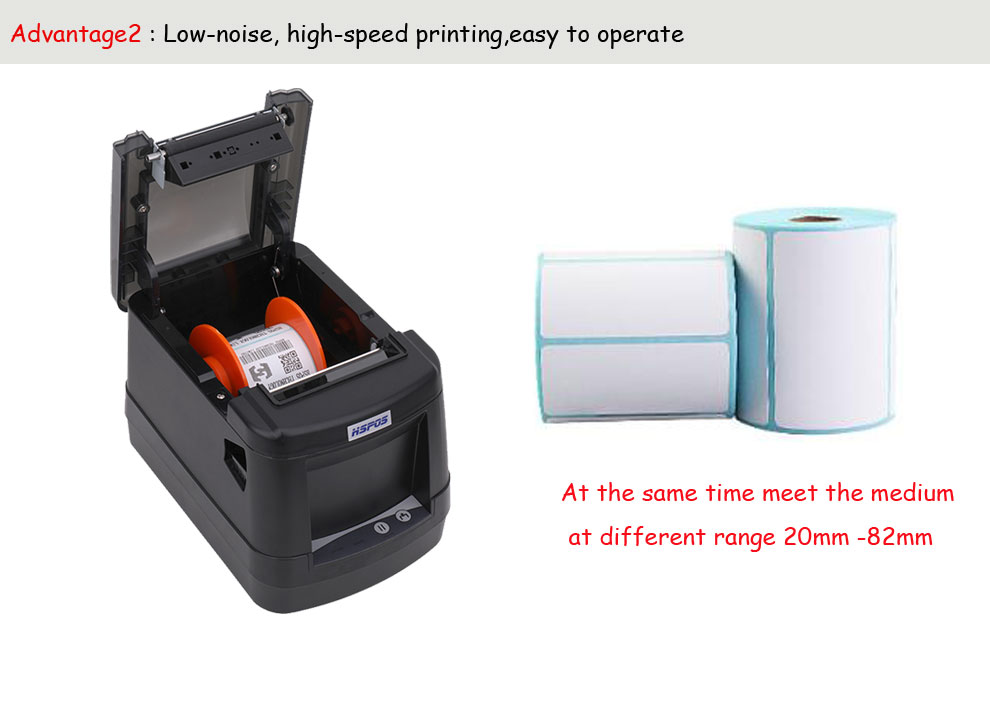

    At the same time meet the medium at different range   20mm -82mm, easy to operate;

    Automatic paper detection and positioning function;

    Temperature self-adaption control;

    Big Paper warehouse for diameter 120mm roll

    Support the free software for Design label

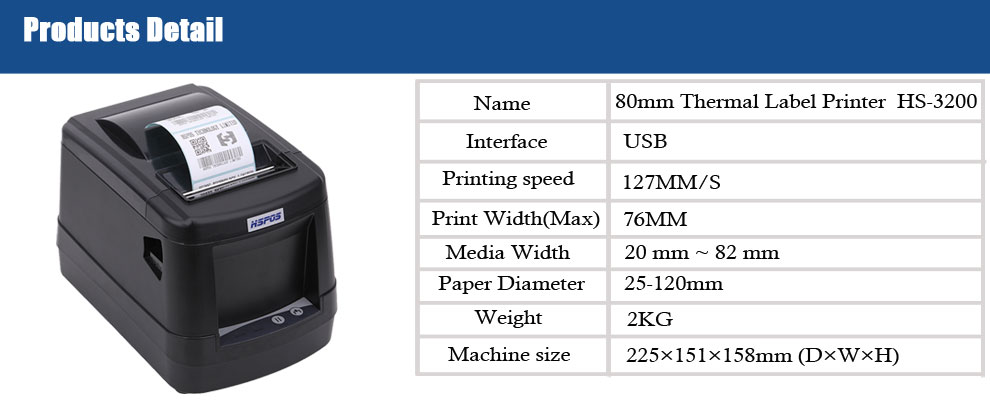

  • Parameters

    Resolution

    203 DPI

    Print Method

    Thermal Print

    Print Speed(Max)

    127 mm (5") / s

    Print Width(Max)

    76mm (3”)

    Print Length(Max)

    1770 mm (70”)

    Printer Size

    225 mm (D) x151 mm (W) x158 mm (H)

    Printer Weight

    1.08kg

    Paper Roll Diameter

    25-120mm

    Paper Direction

    Paper Up

    Processor

    32-bit CPU

    Memory

    8M Flash memory

    8M SDRAM

    Interface

    USB (Standard)

    Bluetooth (Optional)

    Power

    Adaptor  Input: AC   100-240V  Output: DC 24V-2.5A

    User Indicator

    Standard Model  2 Press   Buttons

    1 LED Blue Light1 LED Red Light

    Sensor

    Gap Sensor, Cover Opening Sensor, Printer Head Temperature   Sensor

    Paper Type

    Thermal paper, Thermal adhesive paper, etc

    Media Type

    Continuous,Gap

    Media Width

    20 mm ~ 82 mm

    Media Thickness

    0.06 mm ~  0.25 mm

    Label Length

    10 mm ~ 1770 mm

    Paper off type

    Tear off & peel off

    Gap Height

    Minimum 2 mm

    Print out deviation

    Vertical: 1 mm maximum.

    Horizontal: 1 mm maximum.

    Internal font

    1 set of alphanumeric fonts

    Code Page

    Codepage 437 (English - US)  Codepage 737 (Greek)  Codepage 850 (Latin-1)

    Codepage 852   (Latin-2), Codepage 855 (Cyrillic) , Codepage 857 (Turkish)

    Codepage 860   (Portuguese), Codepage 861 (Icelandic),Codepage 862 (Hebrew)

    Codepage 863 (French   Canadian), Codepage 864 (Arabic), Codepage 865 (Nordic)

    Codepage 866   (Russian), Codepage 869 (Greek 2),Codepage 950 (Traditional Chinese)

    Codepage 936   (Simplified Chinese), Codepage 932 (Japanese),Codepage 949 (Korean)

    Codepage 1250   (Latin-2), Codepage 1251 (Cyrillic), Codepage 1252 (Latin-1)

    Codepage 1253 (Greek),   Codepage 1254 (Turkish), Codepage 1255 (Hebrew)

    Codepage 1256   (Arabic), Codepage 1257 (Baltic), Codepage 1258 (Vietnam)

    ISO-8859-1: Latin-1   (Western European), ISO-8859-2: Latin-2 (Central European)

    ISO-8859-3: Latin-3   (South European), ISO-8859-4: Latin-4 (North European)

    ISO-8859-5: Cyrillic,   ISO-8859-6: Arabic, ISO-8859-7: Greek,ISO-8859-7: Hebrew

    ISO-8859-9: Turkish, ISO-8859-10:   Nordic, ISO-8859-15: Latin-9, UTF-8

    Bar Code

    1D bar code

    Code128 subsets   A.B.C,Code128UCC, EAN128, Interleave 2 of 5,Code 39,Code 93, EAN-13, EAN-8,   Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLESSEY, China   Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post   Identcode, Deutsche Post Leitcode, LOGMARS

    2D bar code

    CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec,   MicroPDF417, QR code, RSS Barcode (GS1 Databar)

    Rotation on font and Bar code

    0°, 90°, 180°, 270°

    Command

    TSPL-EZ emulation

    Environment

    Operation Environment: -10 ~ 50 °C (14 ~ 122 °F), Humidity:10   ~ 90% No condensing

    Storage Environment: -40 ~ 60 °C (-40 ~ 140 °F),   Humidity:10 ~ 90% No condensing

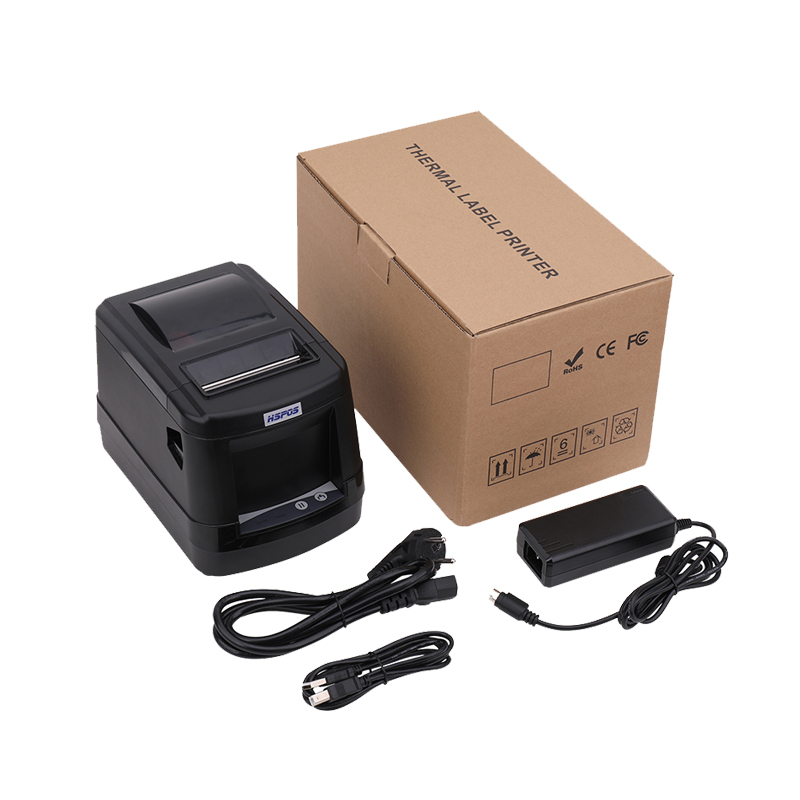

    Accessories

    CD (Windows label editing software, Driver and User   Manual)

    Fast installation guide

    Power adaptor

    Power cable

    USB cable

    Reliability

    One year warranty

    Printer head 50KM or One year warranty. Depends on which   reach first.

    Printer roller 50KM or One year warranty. Depends on which   reach first.
