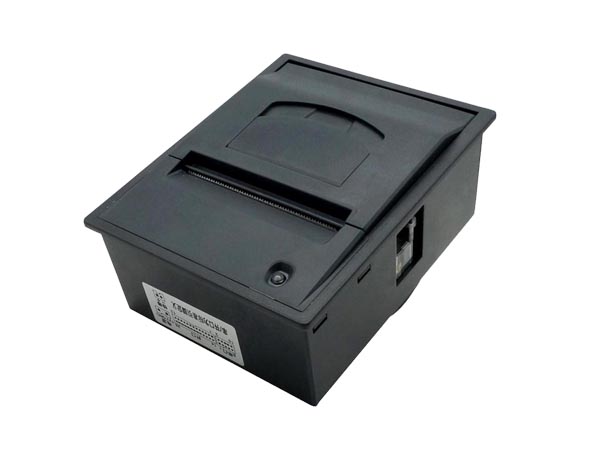

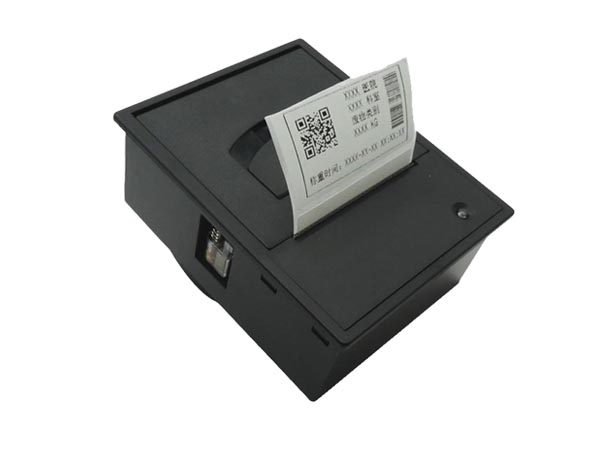

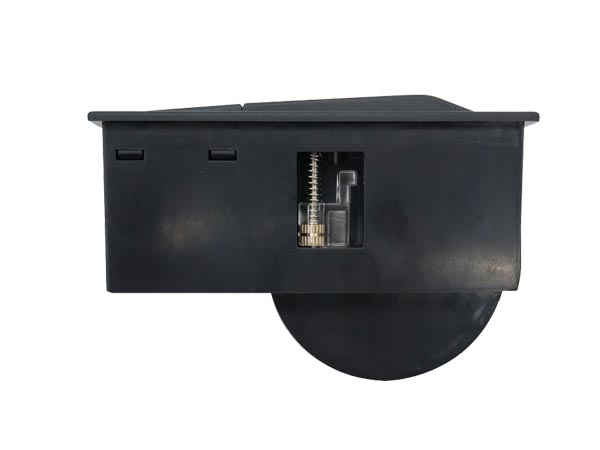

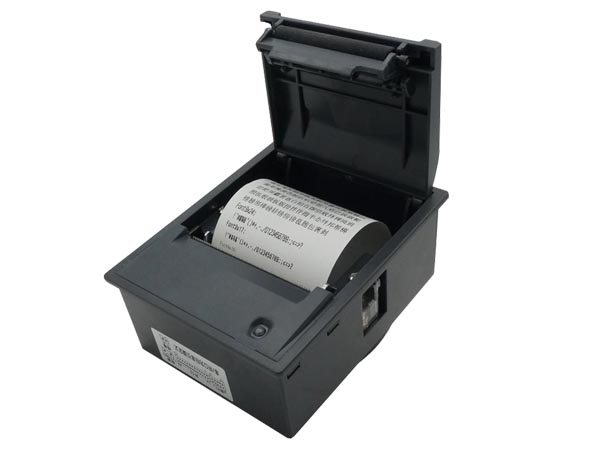

KIOSK Barcode Label Printer

SupportRaspberryPi2 SupportWindows2000/XP/7/8/10,Linux, GoodpriceandShortdeliveryleadtime Factory/Manufacturewithengineerteam,abletodo OEM&ODM Withcutter,mechanism,controlboard;Withbracketoptional SUPORTUSB+parallelInterface Withanadjustablepapernearlysensorsandapapertakeaway sensors HoldingdowntheFeedbutton,poweronselftest. SupportBlackmarkersensorfunctions SupportreceiptandLabelstickerpaper. Withunlockingtoopentheprintercover(optional)
Product detailsPosition:Home >Products > Product details
  • Description

    l  Support Raspberry Pi 2

    l  Support Windows2000/XP/7/8/10, Linux,

    l  Good price and Short delivery lead time

    l  Factory/Manufacture with engineer team, able to do OEM&ODM

    l  With cutter, mechanism, control board; With bracket optional

    l  SUPORT USB+parallel Interface

    l  With an adjustable paper nearly sensors and a paper take away sensors

    l  Holding down the Feed button, power on selftest.

    l  Support Black marker sensor functions

    l  Support receipt and Label sticker paper.

    l  With unlocking to open the printer cover (optional)


  • Parameter

    Printing   Method

    Thermal

    Dots/line

    640 dots/line

    Resolution

    203DPI

    Printing Width(mm)

    72mm

    Paper Width(mm)

    80mm

    Paper Thickness(μm)

    56-150

    Feed Resolution(mm)

    0.125

    Interface

    USB+parallel

    W x D x H(mm)

    131.8*114.8*86mm

    Weight(g)

    532g

    Head temperature detection

    Thermistor

    Paper detection

    Transmission photoelectricity switch

    Black mark detection

    Reflecting photoelectricity pipe

    Platen position detection

    Light touch swith

    Operation voltage (V)

    24±10%

    Logical voltage(V)

    5±0.25

    Formfeeding motor voltage(V)

    24±10%

    Auto cutting motor voltage(V)

    24±10%

    Detection voltage (V)

    5±0.25

    Abrasion resistance

    100 km

    Auto cutting frequency

    1 million times

    Operating temperature(°C)

    0 to 50 (no condensation)

    Operating humidity(RH)

    10% to 80% (no condensation)

    Storage temperature(°C)

    -25 to 70 (no condensation)

    Storage humidity(RH)

    5% to 95% (no condensation)
