· Smart appearance
· Easy paper loading

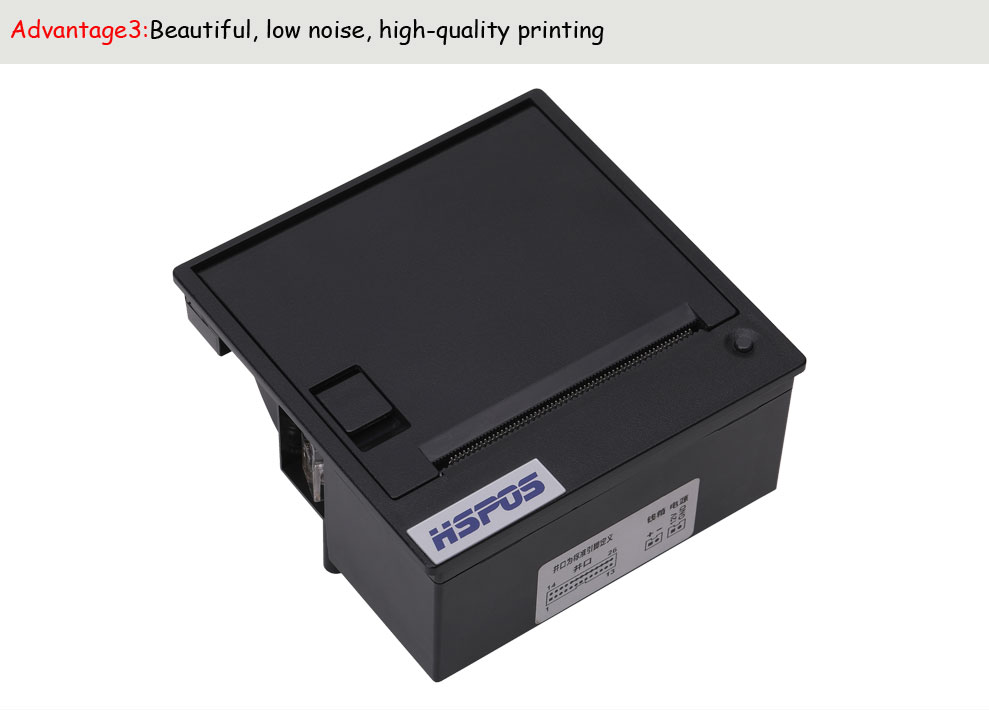

· Low noise thermal printing
· Different interfaces optional

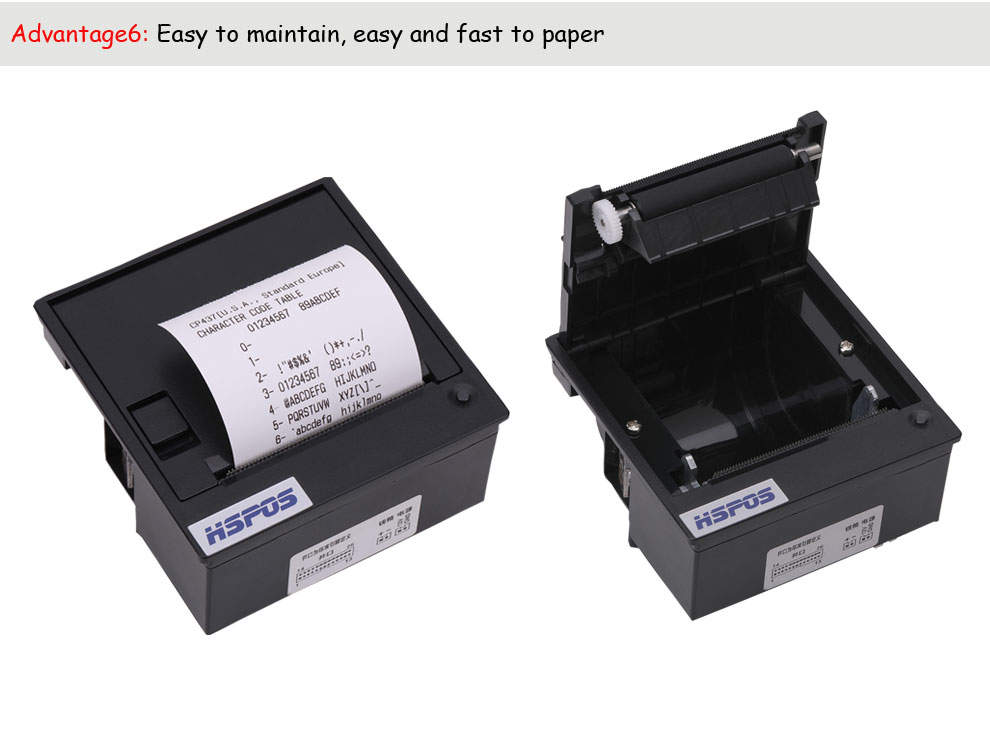

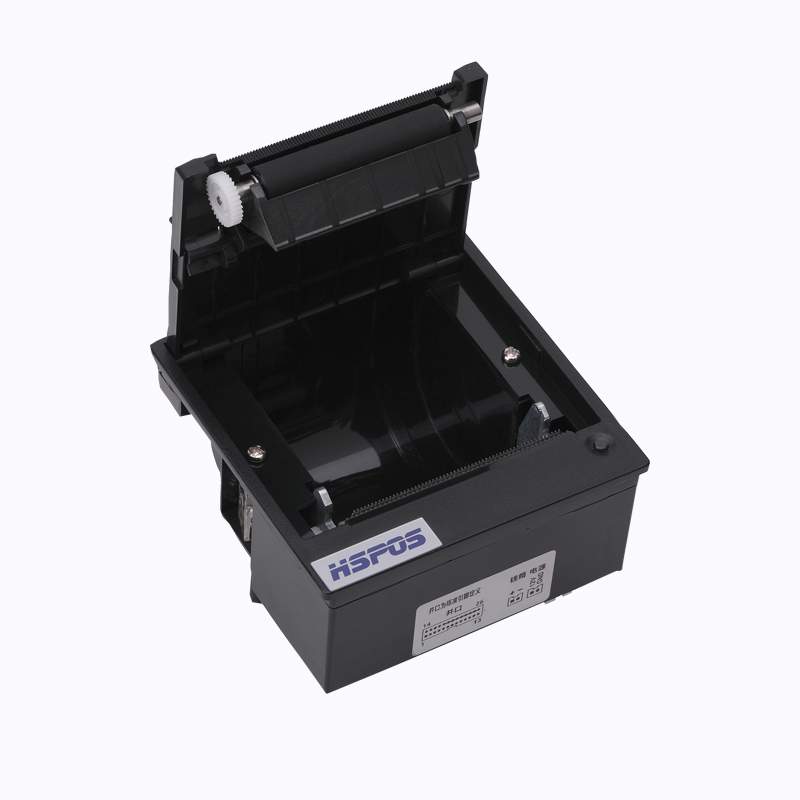

· Front panel make paper replacement easily

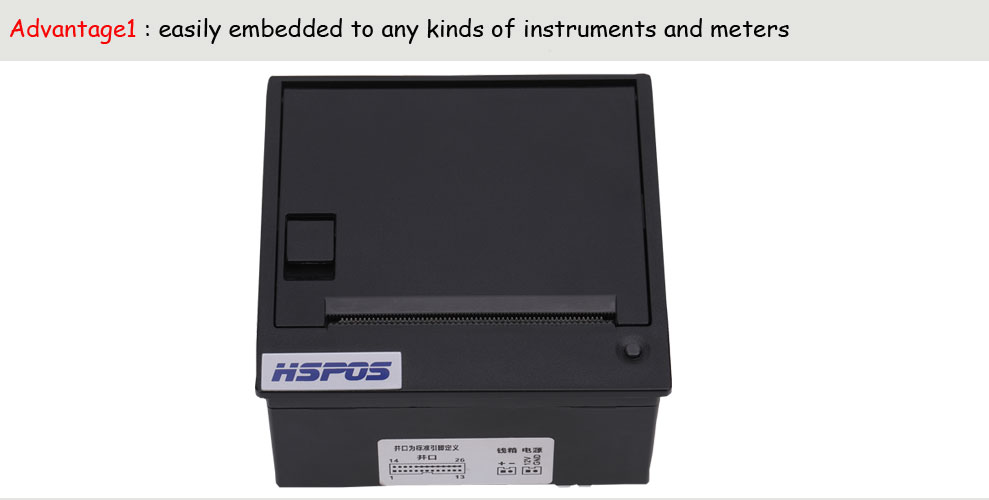

· Easily embedded to any kinds of instruments and meters
· Support Cash Drawer port.

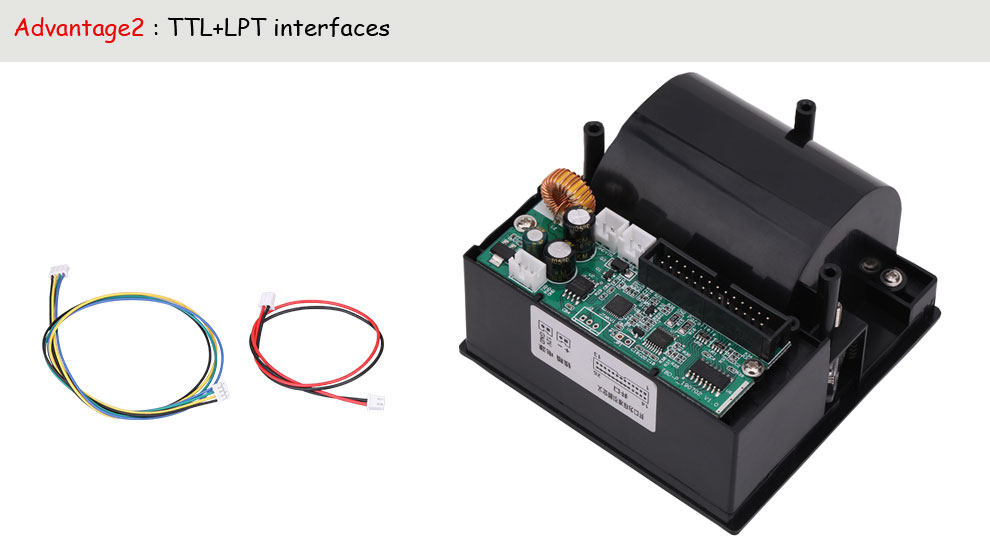

· Support usb+LPT+RS232

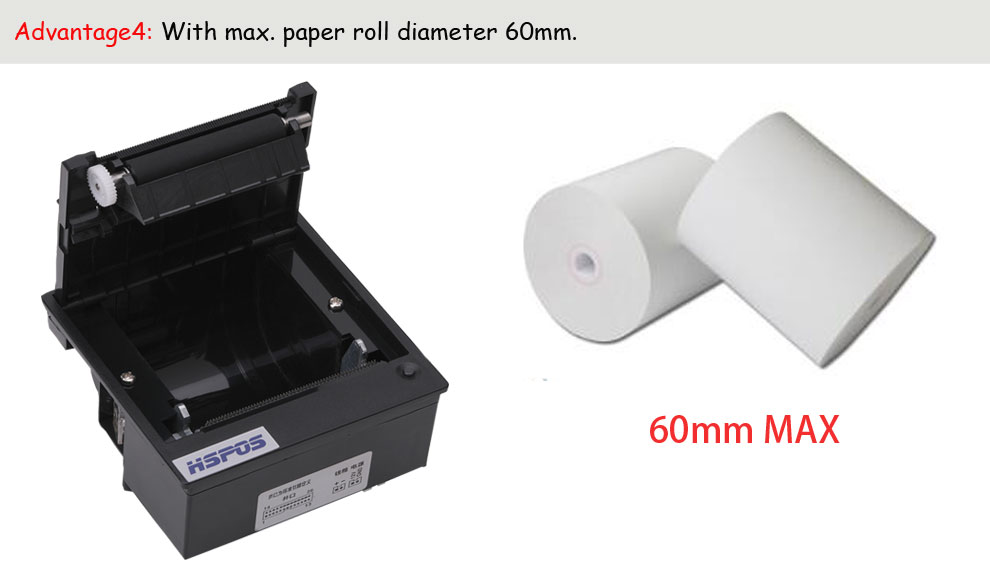

· Support big Paper Roll Diameter 60mm
· 80mm/s Printing speed
Printing Method | Thermal Dot Line | |
Printing Speed | 80mm/s | |
Resolution | 8 dots/mm, 384 dots/line | |
Effective Printing Width | 48mm | |
Character | Character Set | ASCII,GB2312-80(Chinese) |
Print Font | ANK:8x16,9x17,9x24,12×24, GBK: 16×16,24×24 | |
Paper Spec | Paper Type | Thermal paper |
Paper Width | 57.5± 0.5mm | |
Paper Thickness | 60-85µm | |
Paper Roll Diameter | Max: 60mm | |
Reliability | MCBF | 5 million lines |
Interface | USB+LPT+RS232 | |
Power Supply (Adapter) | 12V | |

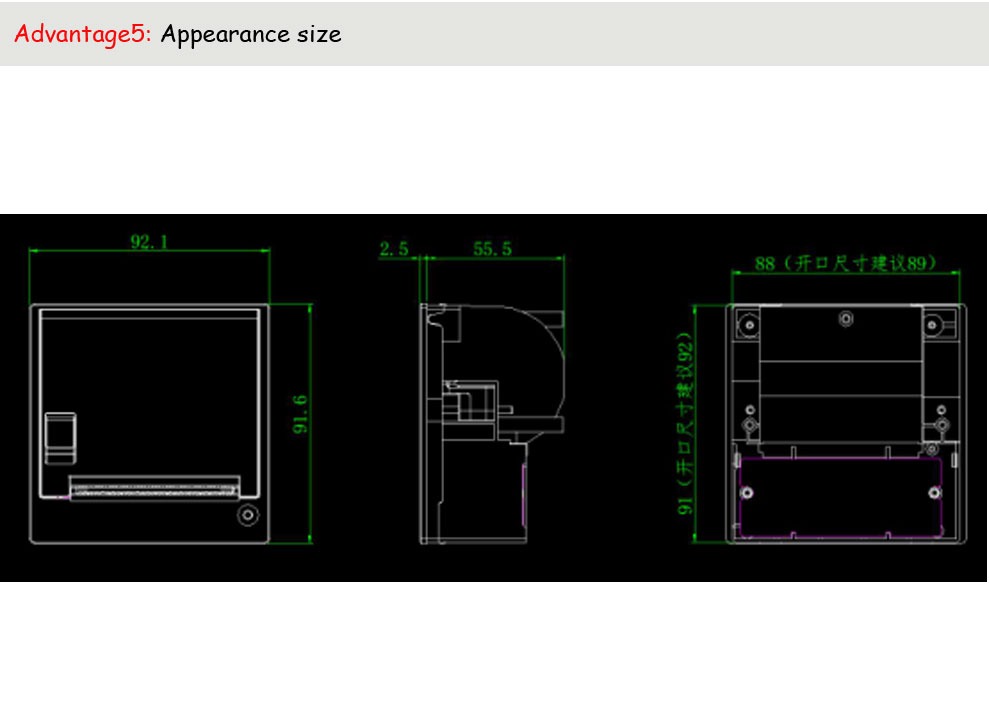

Physical | Outline Dimension (WxDxH) | 92.1x91.6x55.5mm |
InstallationPortSize | 89x92mm | |
Color | black/white | |
Environment | Operating Temp | 5°C ~ 50°C |
Operating Humidity | 10% ~ 80% | |
Storage Temp | -20°C ~ 60°C | |
Storage Humidity | 10% ~ 90% | |
