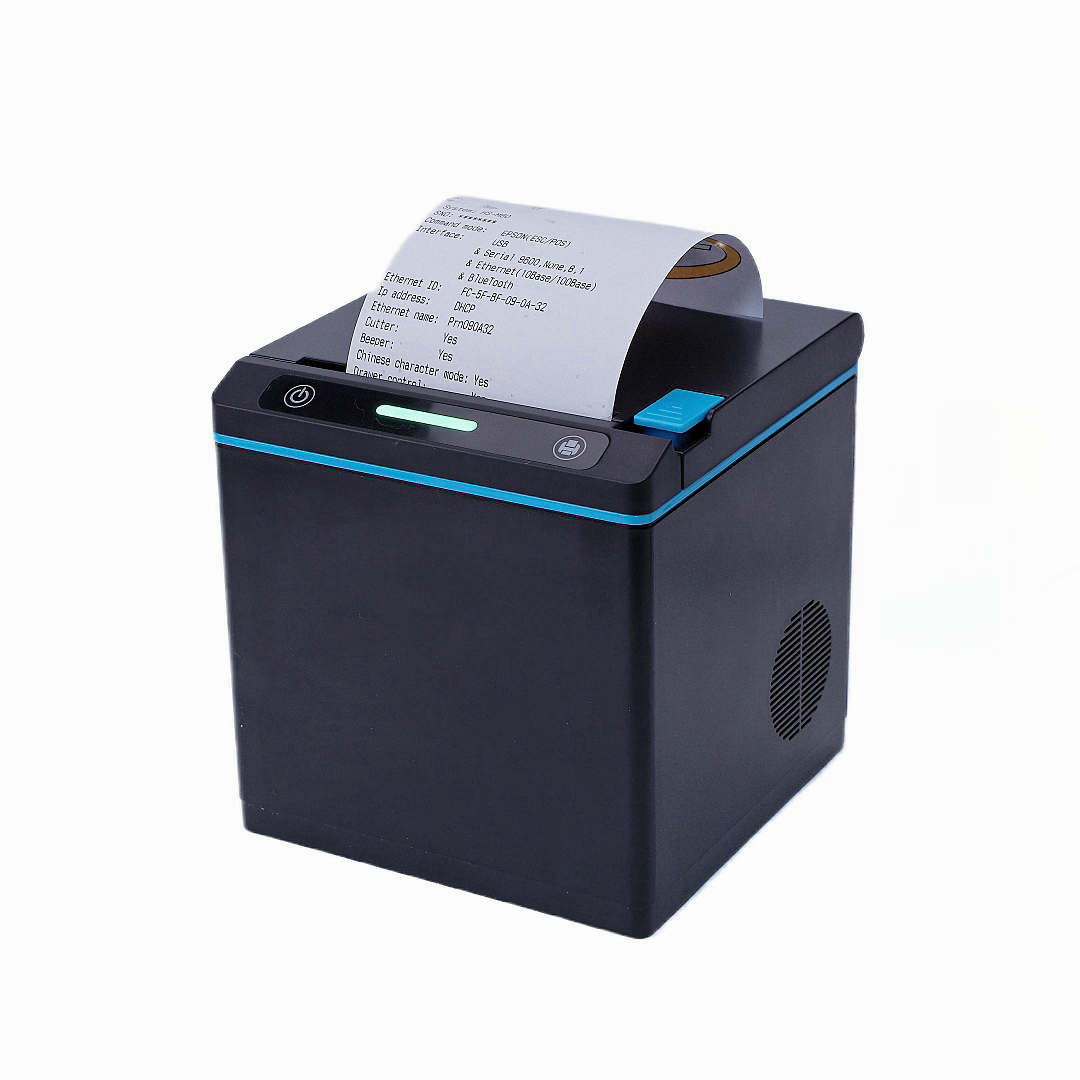

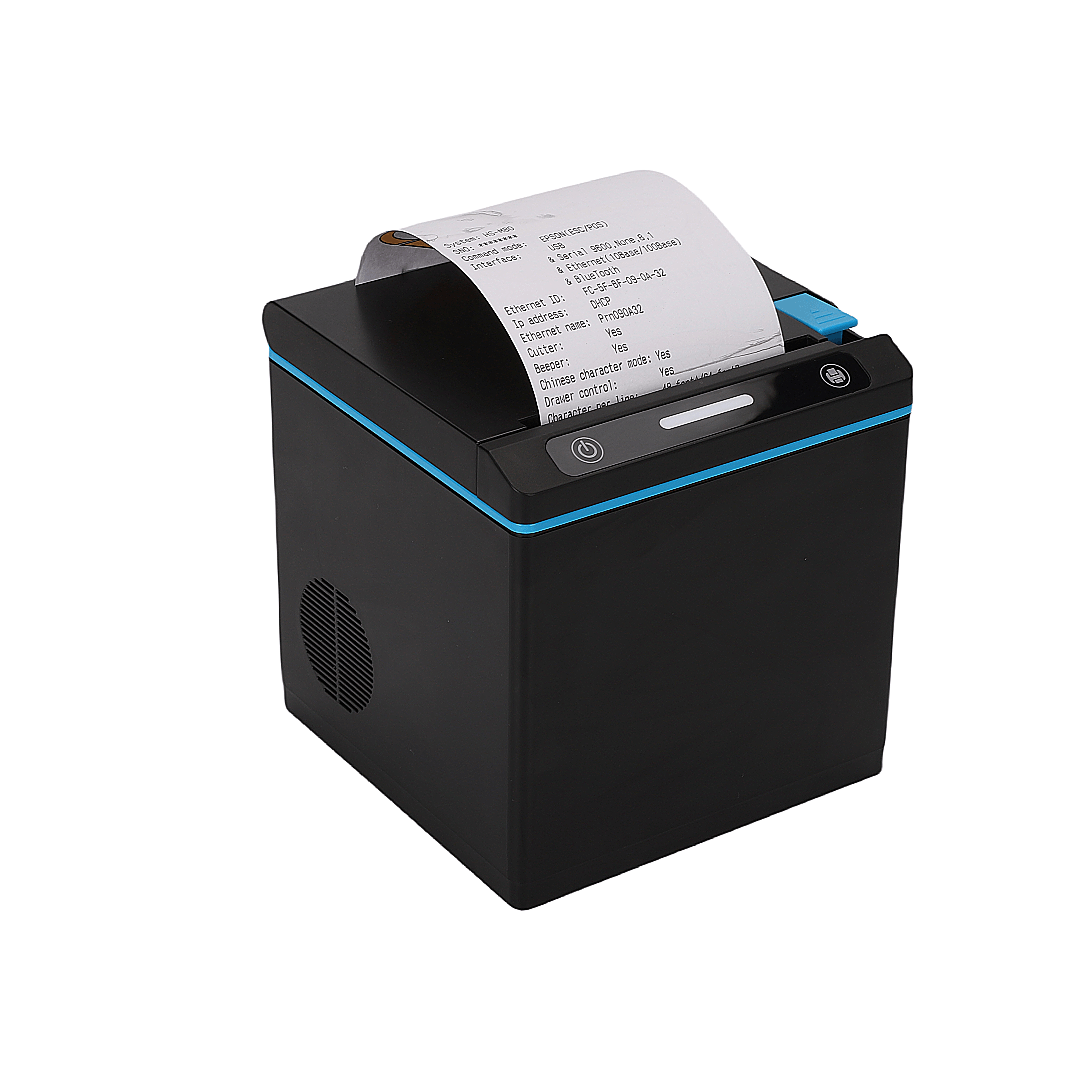

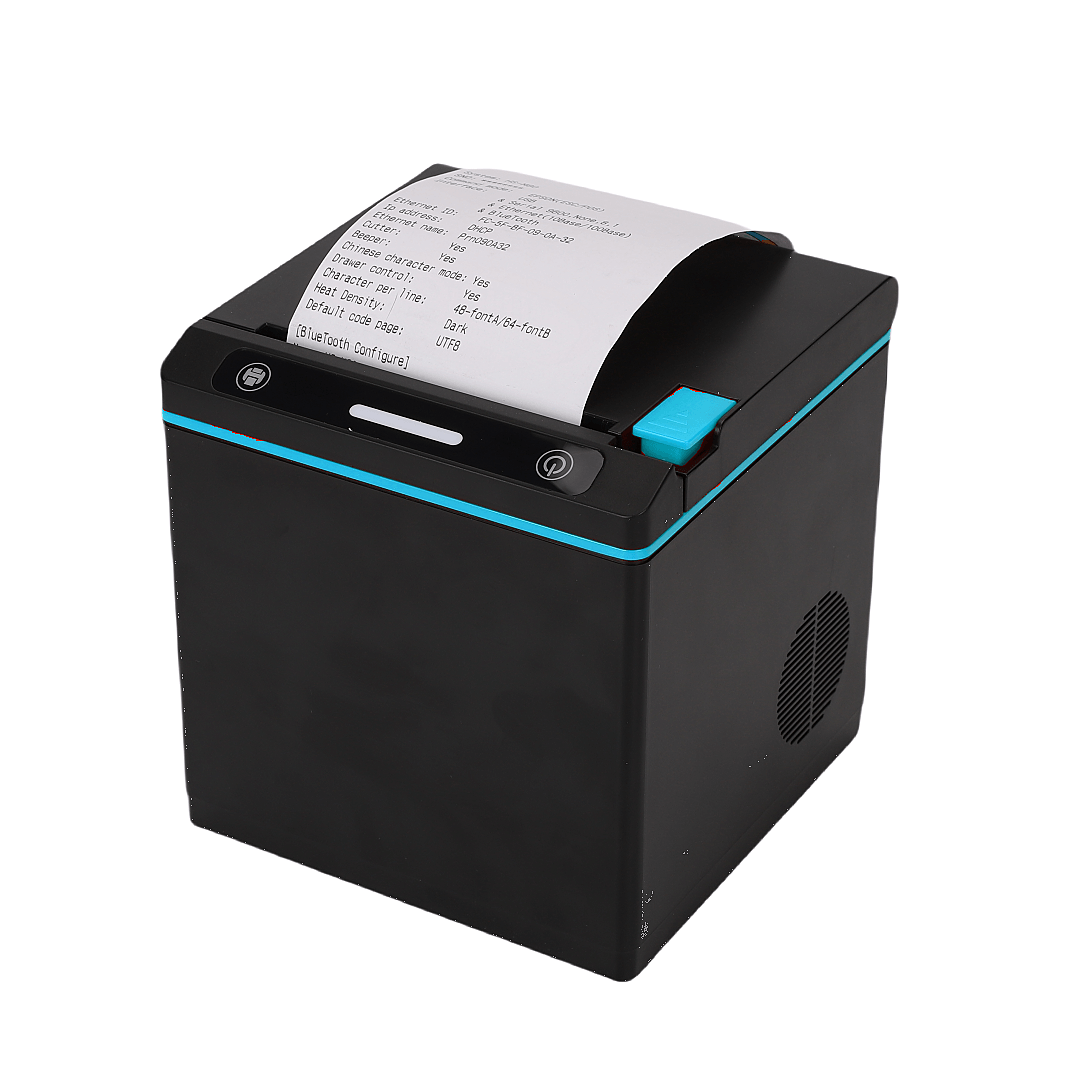

u Modern and compact design 3" thermal receipt printer;

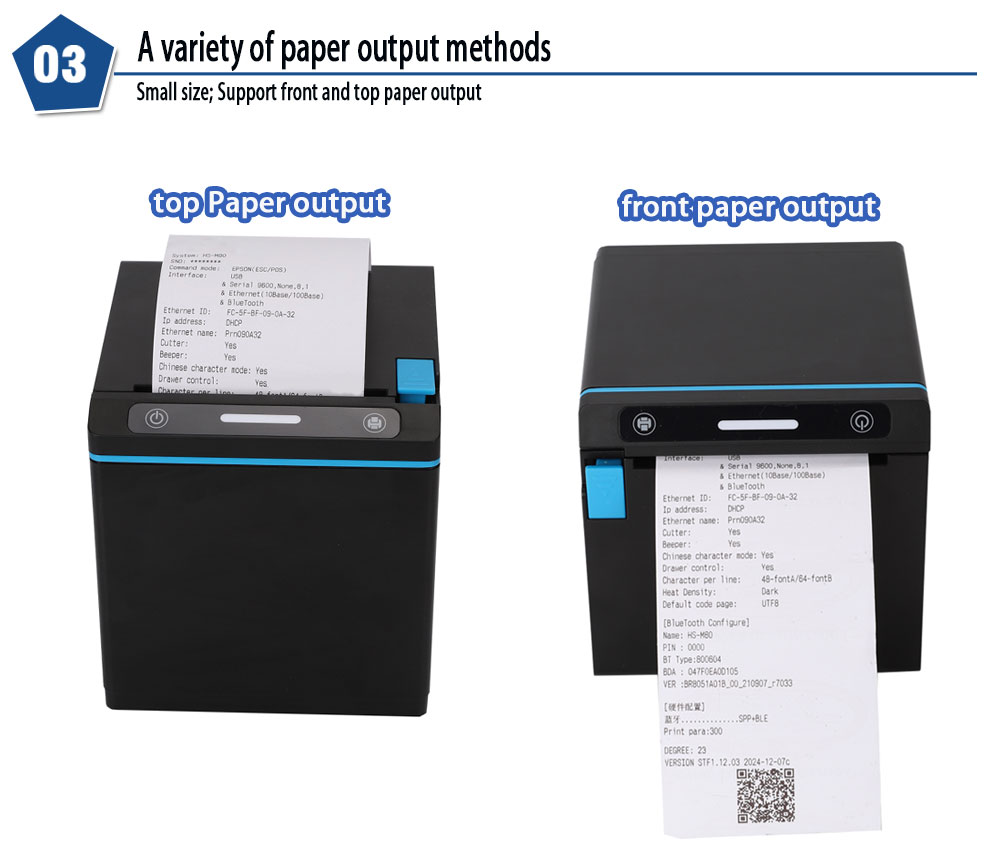

u small size; supports both front and top paper exits;
u Using 100M Ethernet card, connect printer faster,
u Support LOGO Graphical download and print;

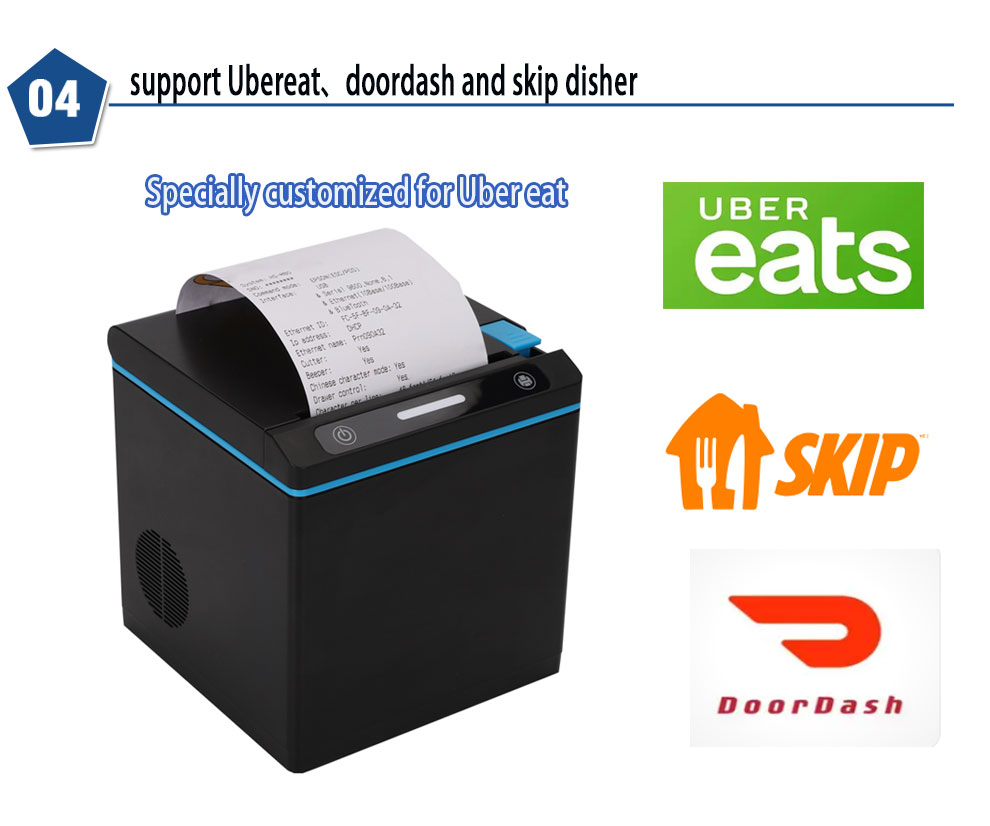

u Compatible with multiple delivery platforms

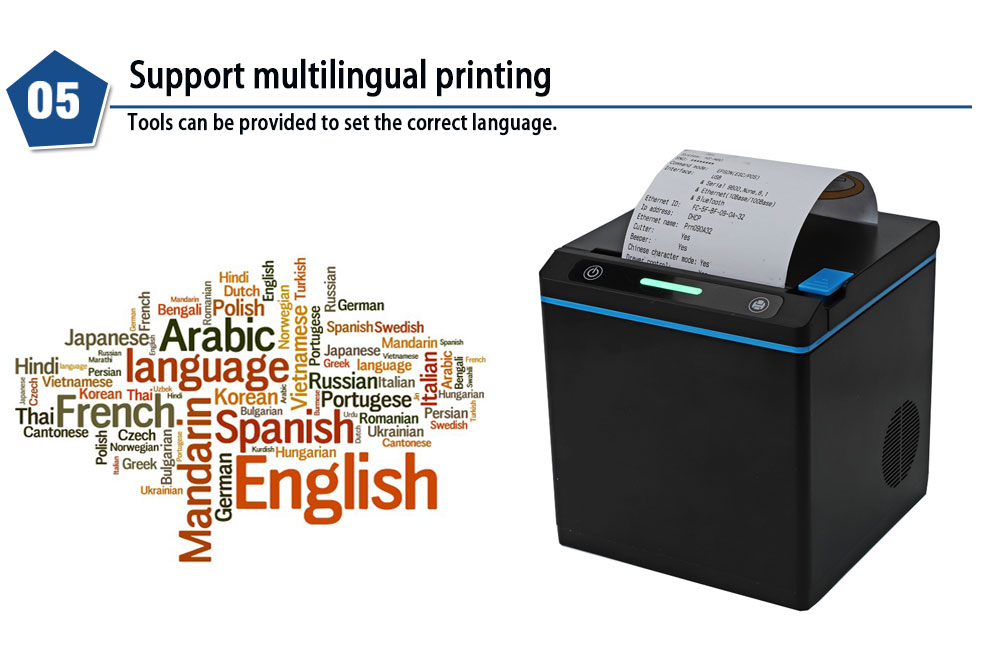

u Support Multi language printing

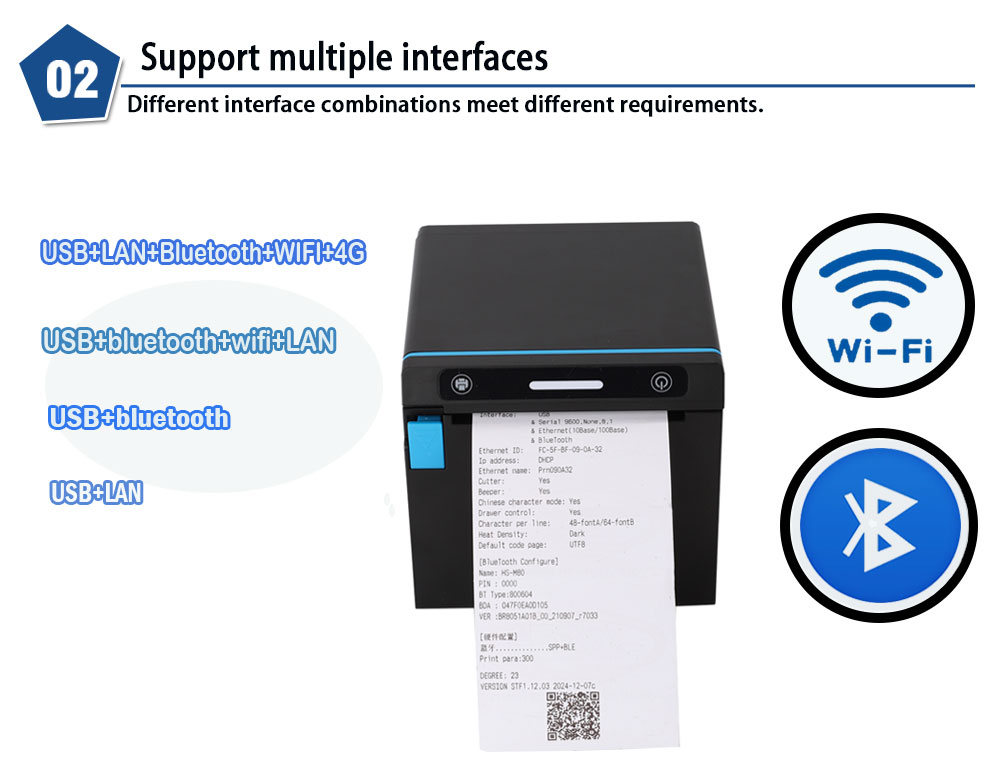

u interface: USB+LAN+Bluetooth+WIFI+GPRS
u Support 4G GPRS Network
u Compatible with ESC/POS print instruction mode;
u Support OPOS Drivers
u Support 7 tablets connected by Bluetooth at the sametime

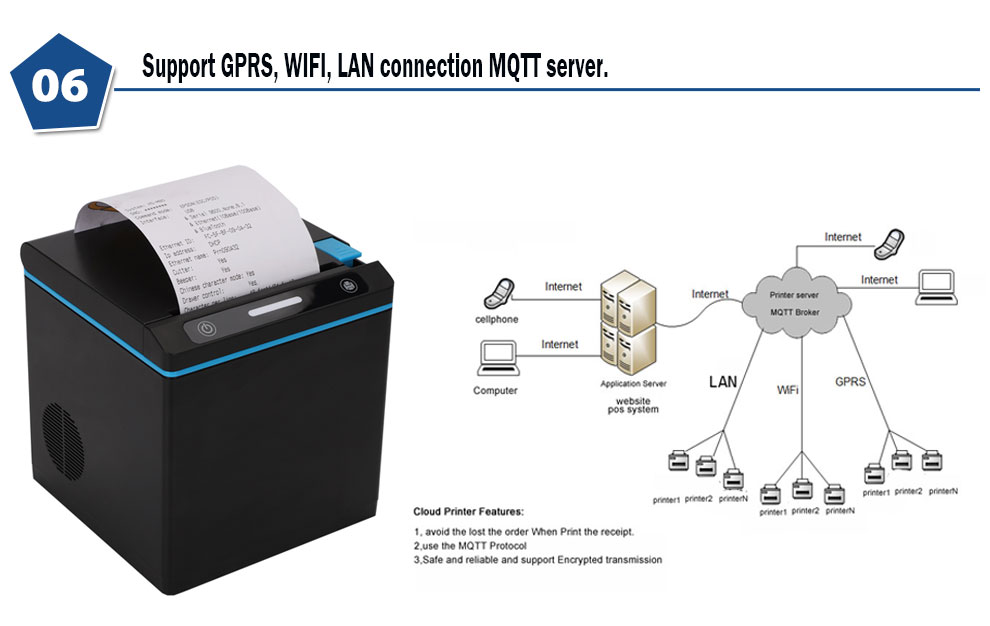

u Support MQTT protocol and web socket Protocols
u With led flash and buzz when order coming .
u Support windows, Linux, Mac drivers Printing
u Built in DHCP Servers, can get the ip address automatically
u Support Cash Drawer port and Auto cutter
u WIFI support STA SSID AND P2P (AP)
u Support WPS wifi configuration automatically
u Support Multiple developing language, Java, C++,C#, JS etc, easy to SDK.

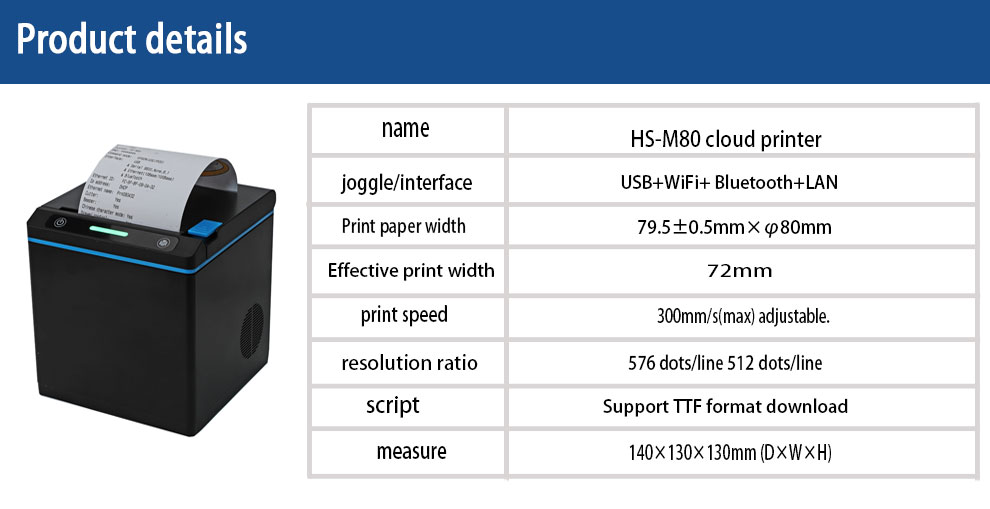

Printing method | Direct thermal |
Print width | 72mm |
Column capacity | 576 dots/line 512 dots/line |
Printing speed | 300mm/s |
Interface | USB/ LAN/ Bluetooth/WIFI/4G |

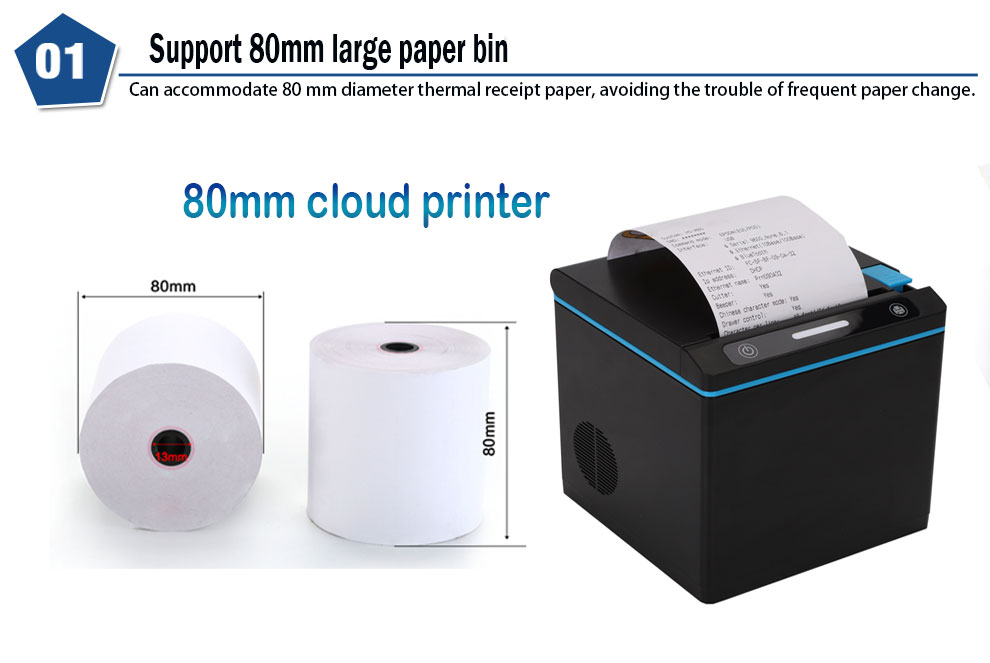

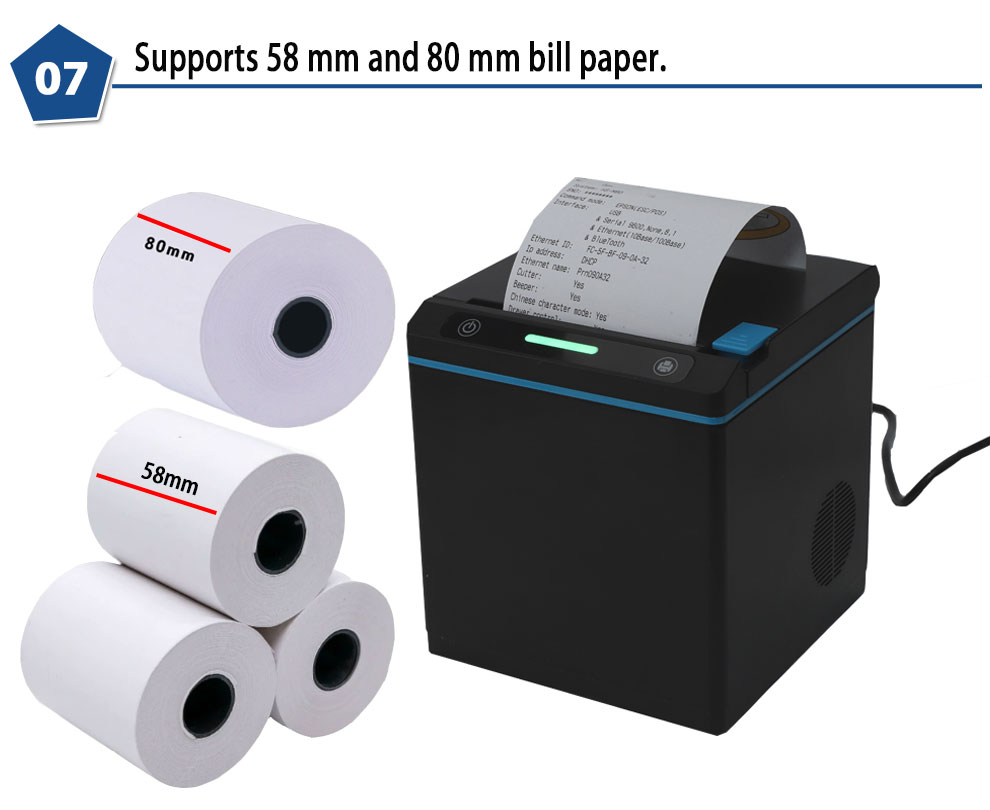

Printing paper | 79.5±0.5mm×φ80mm |
Line spacing | 3.75mm (Adjustable by commands) |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots）Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）Support TTF fromat font |
Auto cutter | Full or partial ( Optional) |
Barcode Character | |
Extension | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） |
Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8/CODE39/ITF/CODABAR/CODE93/CODE128 |
2D code | QR Code |
Buffer | |
Input buffer | 32048k bytes |
Power | |
Power adaptor | Input：AC 110V/240V, 50～60Hz |
Power source | Output：DC 24V/2.5A |
Cash drawer output | DC 24V/1A |
Physical characteristics | |
Weight | 1.60KG |
Dimensions | 140x130x130mm (D×W×H) |
Environmental Requirements | |
Work environment | Temperature (0～45) humidity(10～80%) |
Storage environment | Emperature(-10～60℃) humidity(10～80%) |
Reliability | |
Cutter life | 1million cuts |
Printer head life | 100KM |
