Embedded Android Kiosk printer for POS system
Easy paper loading

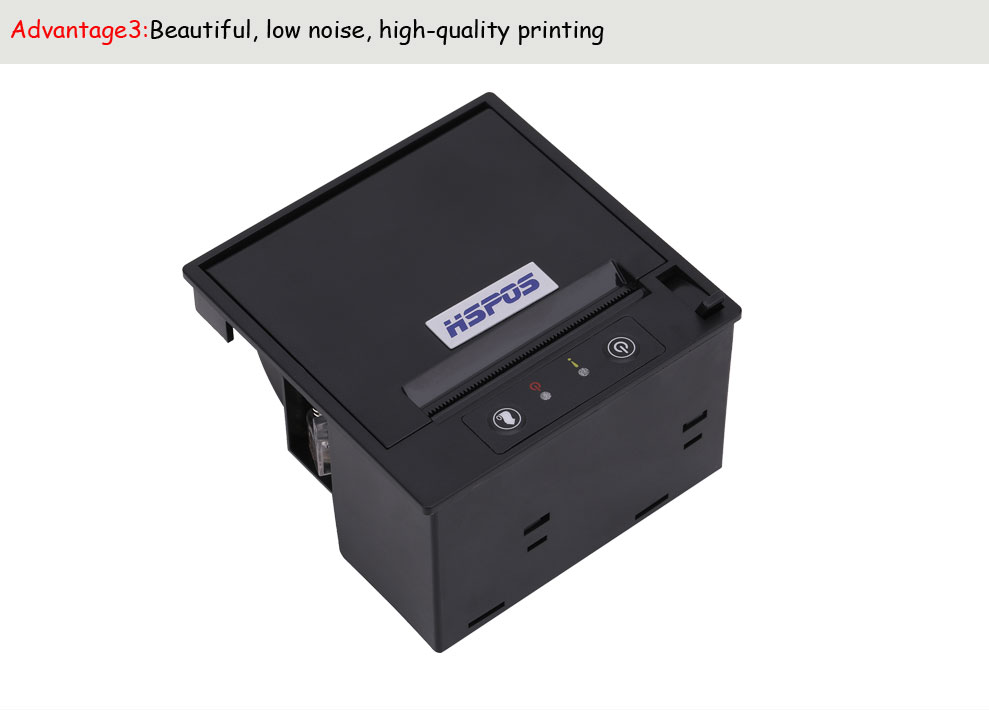

Low noise thermal printing
Different interfaces optional

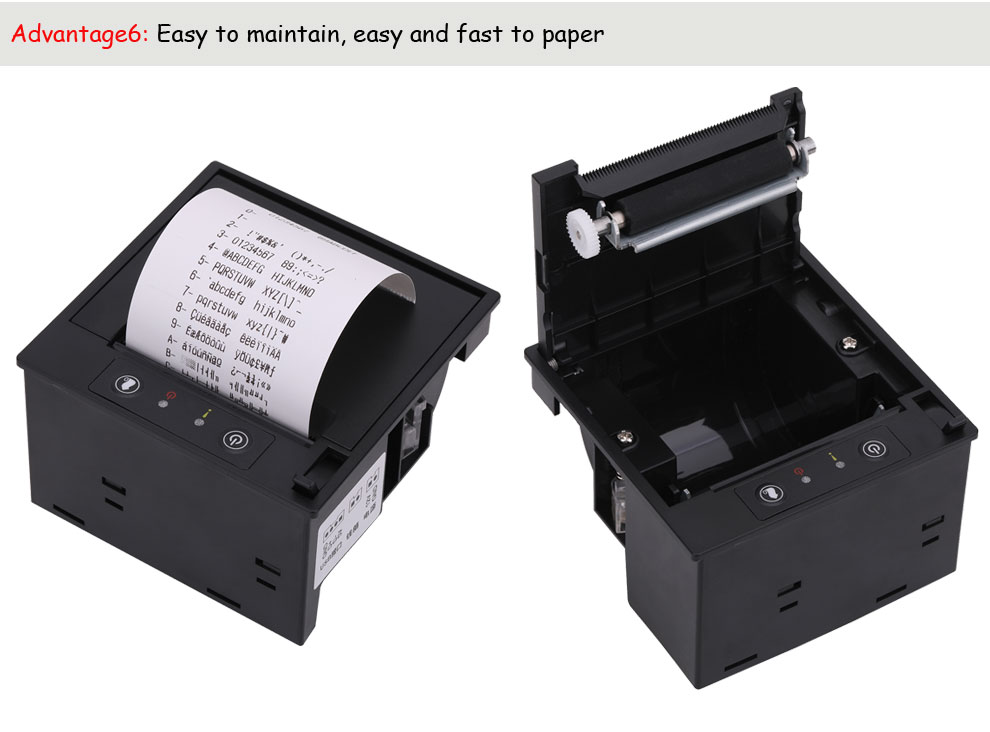

Front panel make paper replacement easily

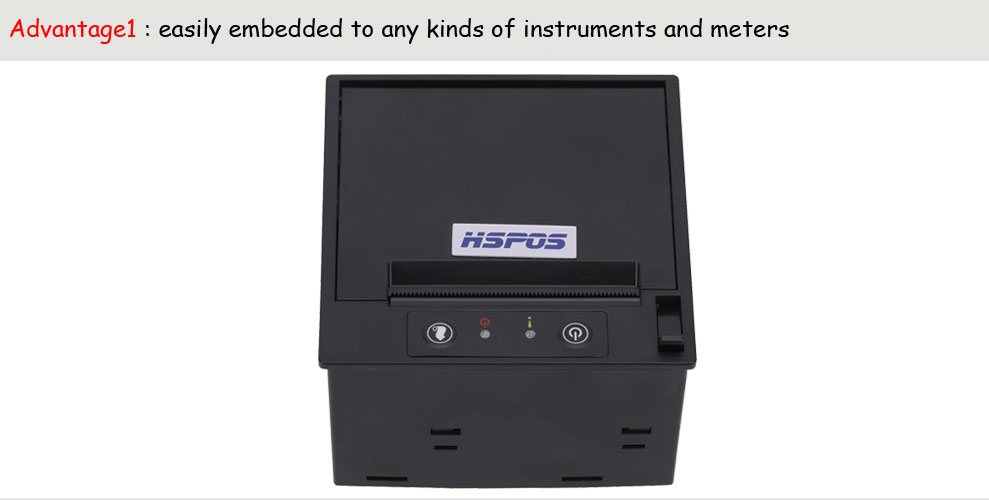

Easily embedded to any kinds of instruments and meters
Support Cash Drawer port.

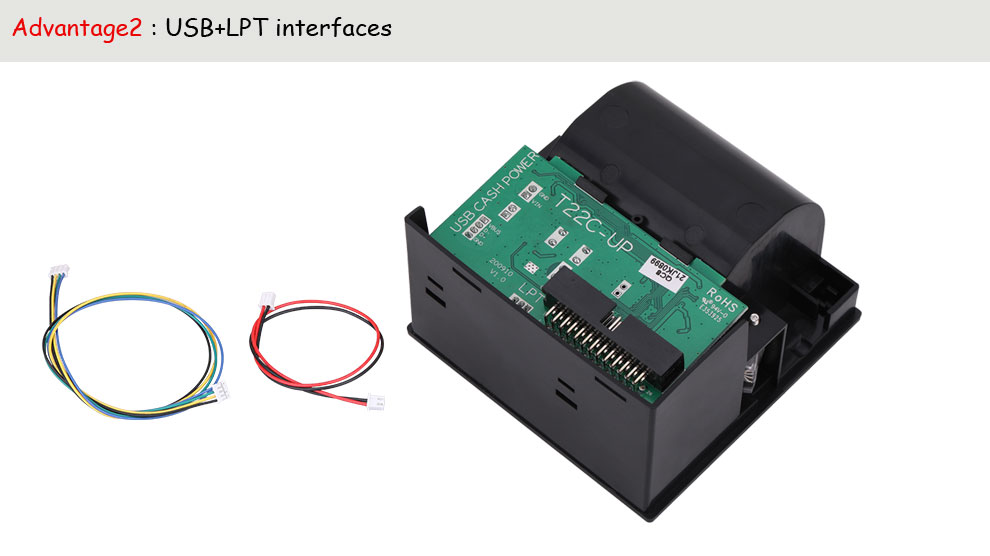

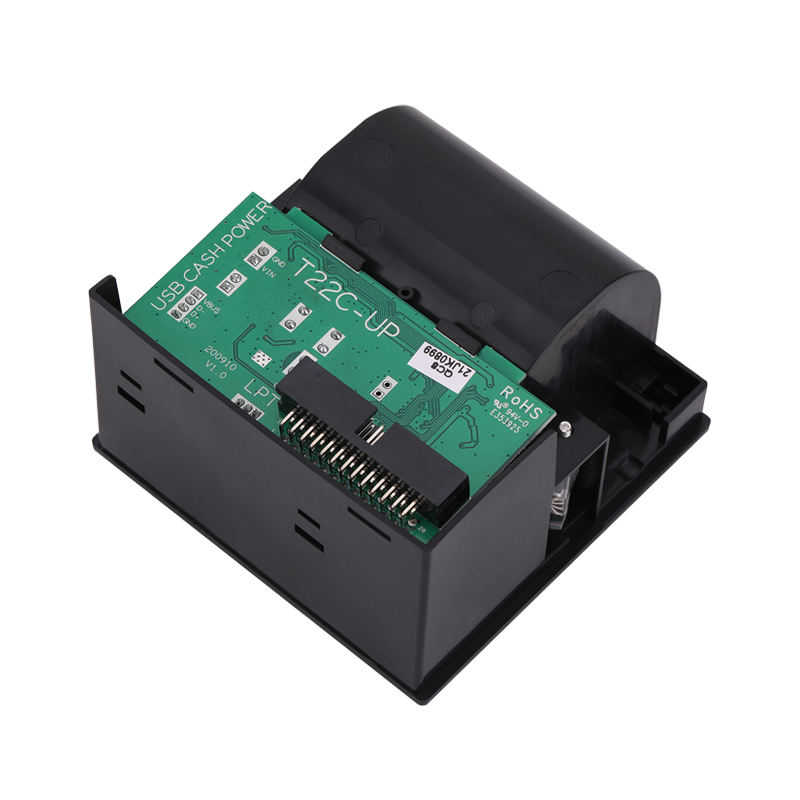

Support usb+Parallel

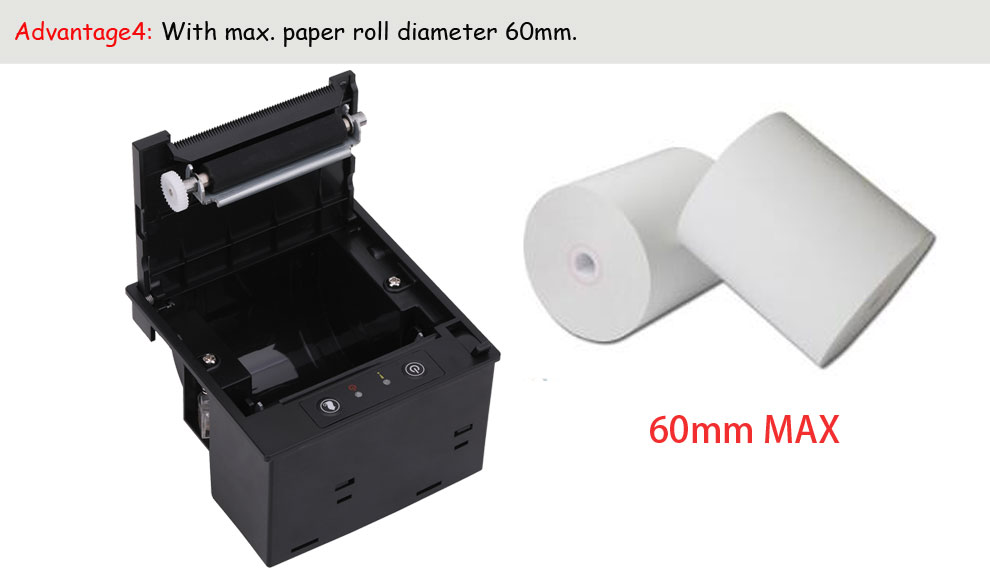

Support big Paper Roll Diameter 60mm
120mm/s Printing speed

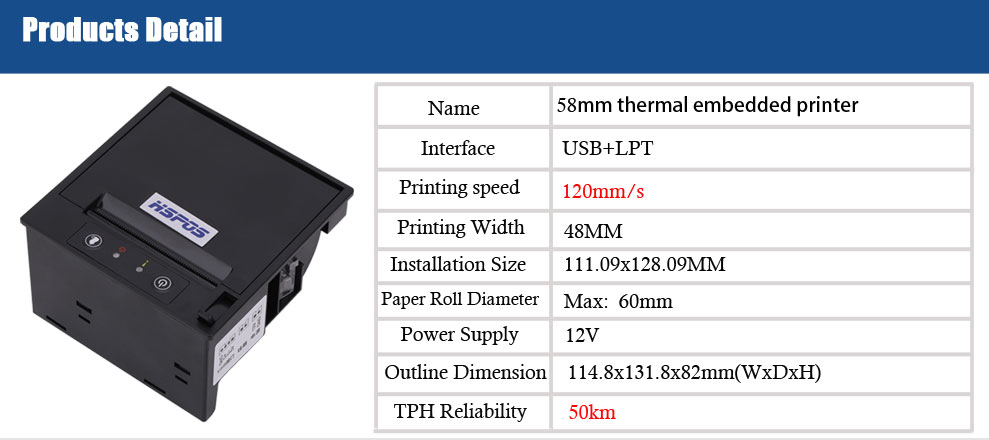

Embedded Android Kiosk printer Parameter
Printing Method | Thermal Dot Line | |
Printing Speed | 120mm/s | |
Resolution | 8 dots/mm, 384 dots/line | |
Effective Printing Width | 48mm | |
Character | Character Set | ASCII,GB2312-80(Chinese) |
Print Font | ANK:8x16,9x17,9x24,12×24, GBK: 16×16,24×24 | |
Paper Spec | Paper Type | Thermal paper |
Paper Width | 57.5± 0.5mm | |
Paper Thickness | 60-85µm | |
Paper Roll Diameter | Max: 60mm | |
Reliability | MCBF | 5 million lines |
Interface | USB+lpt/TTL+lpt | |
Power Supply (Adapter) | 12V | |

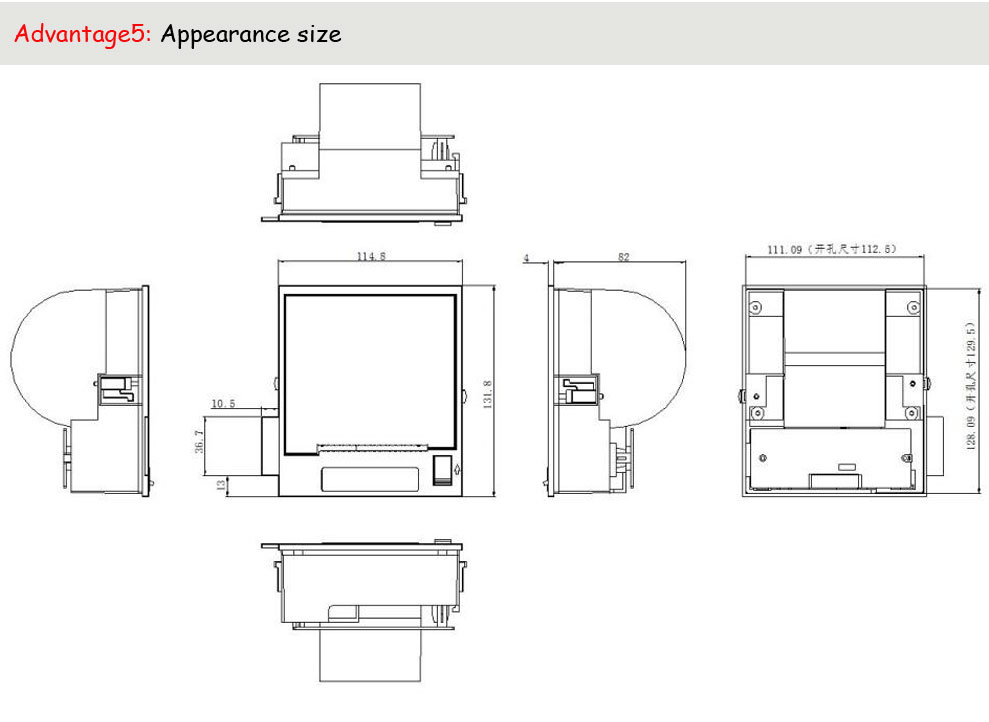

Physical | Outline Dimension (WxDxH) | 114.8x131.8x82mm |
InstallationPortSize | 111.09x128.09mm | |
Color | black/white | |
Environment | Operating Temp | 5°C ~ 50°C |
Operating Humidity | 10% ~ 80% | |
Storage Temp | -20°C ~ 60°C | |
Storage Humidity | 10% ~ 90% | |
