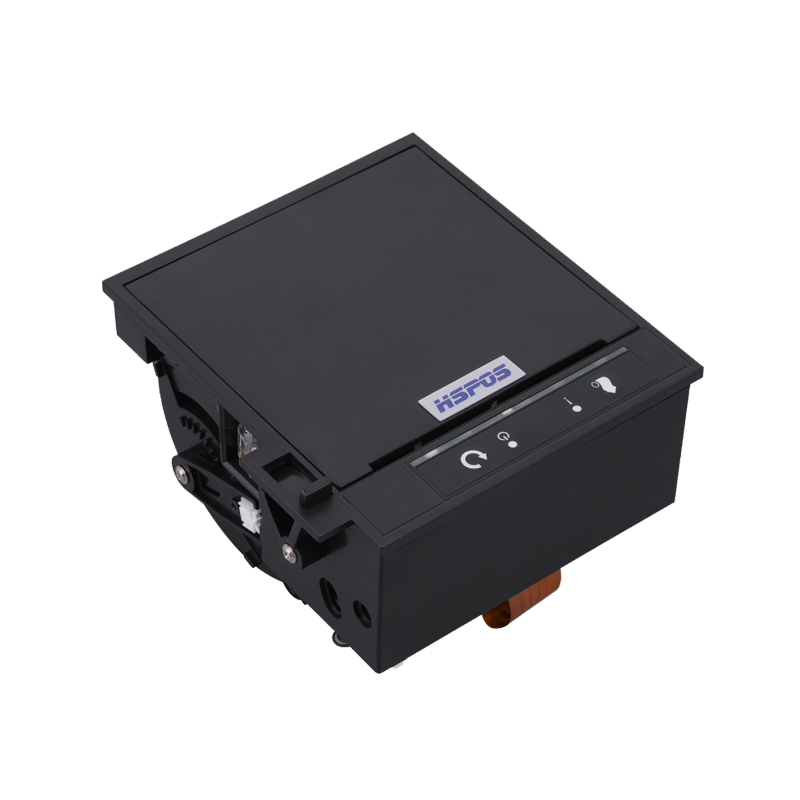

Embedded label printer for POS system
Support Raspberry Pi 2

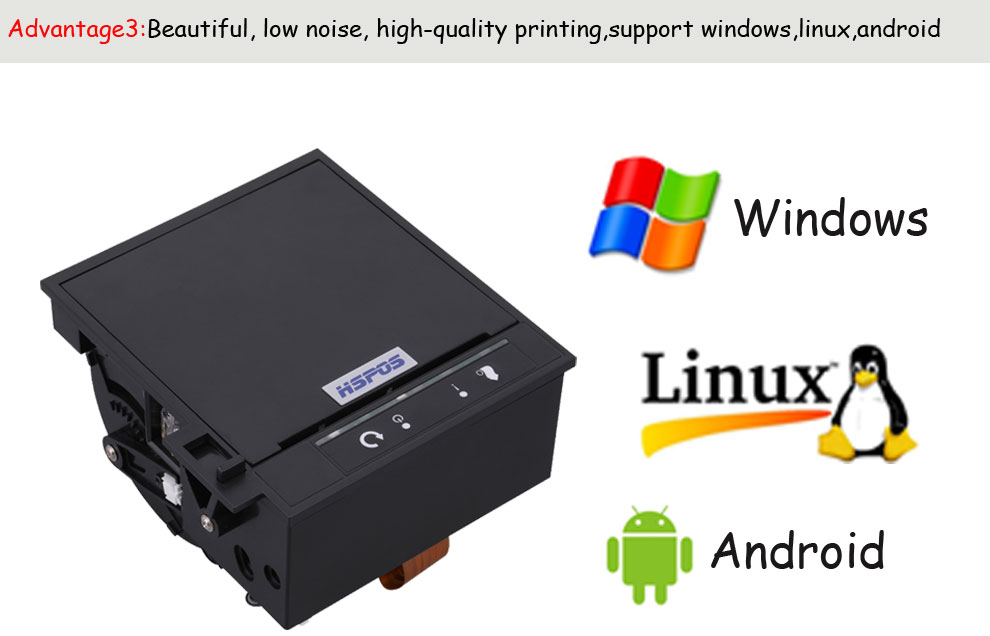

Support Windows2000/XP/7/8/10, Linux,
Good price and Short delivery lead time
Factory/Manufacture with engineer team, able to do OEM&ODM

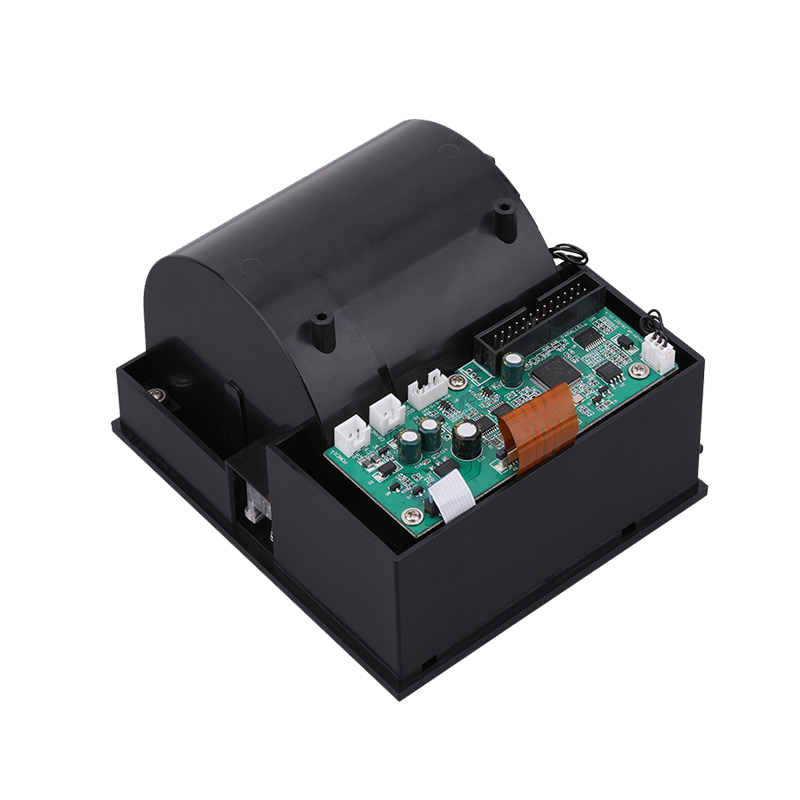

With cutter, mechanism, control board; With bracket optional

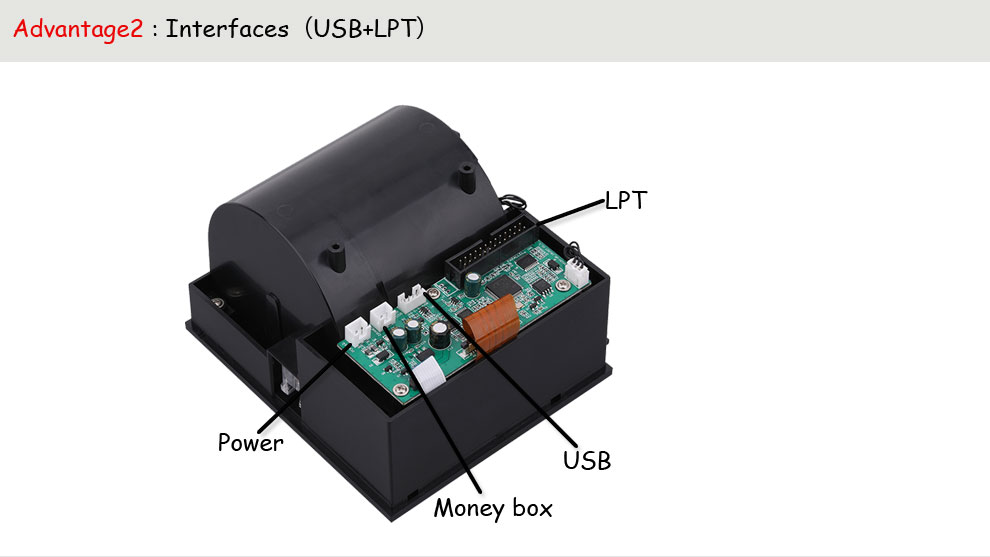

SUPORT USB+parallel Interface
With an adjustable paper nearly sensors and a paper take away sensors
Holding down the Feed button, power on selftest.
Support Black marker sensor functions

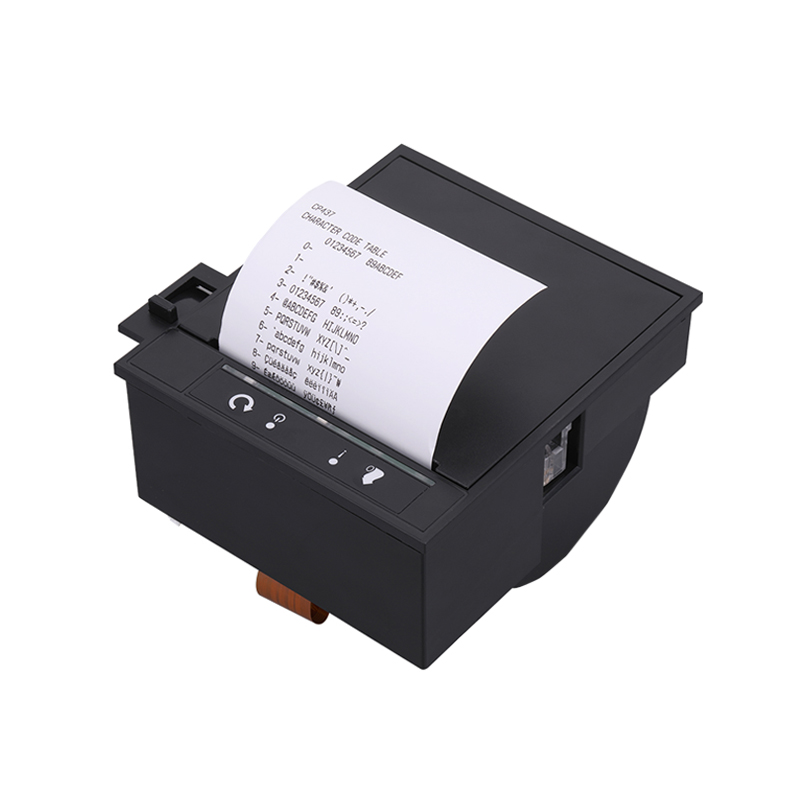

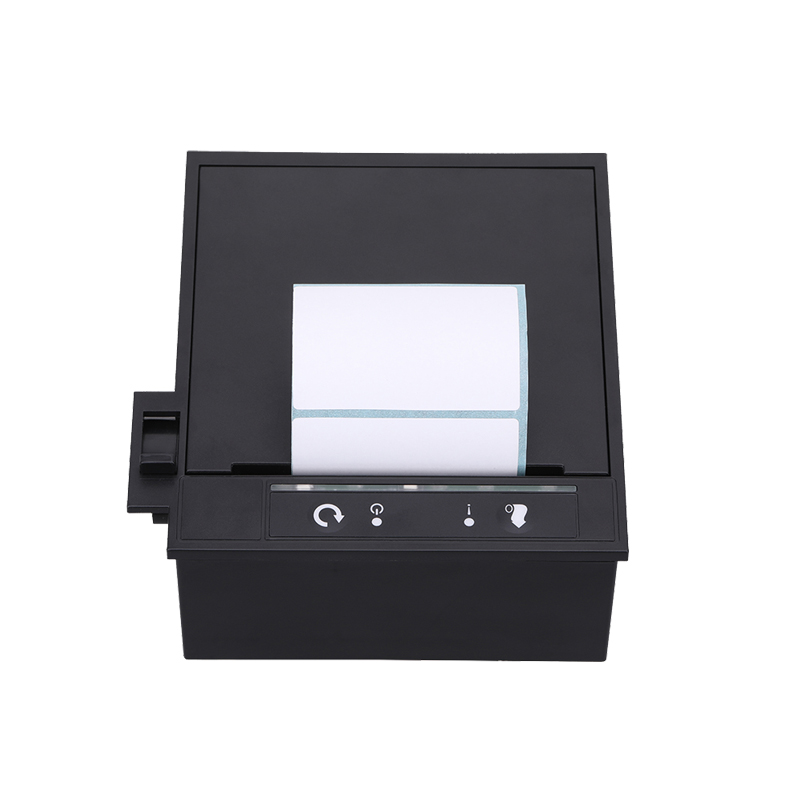

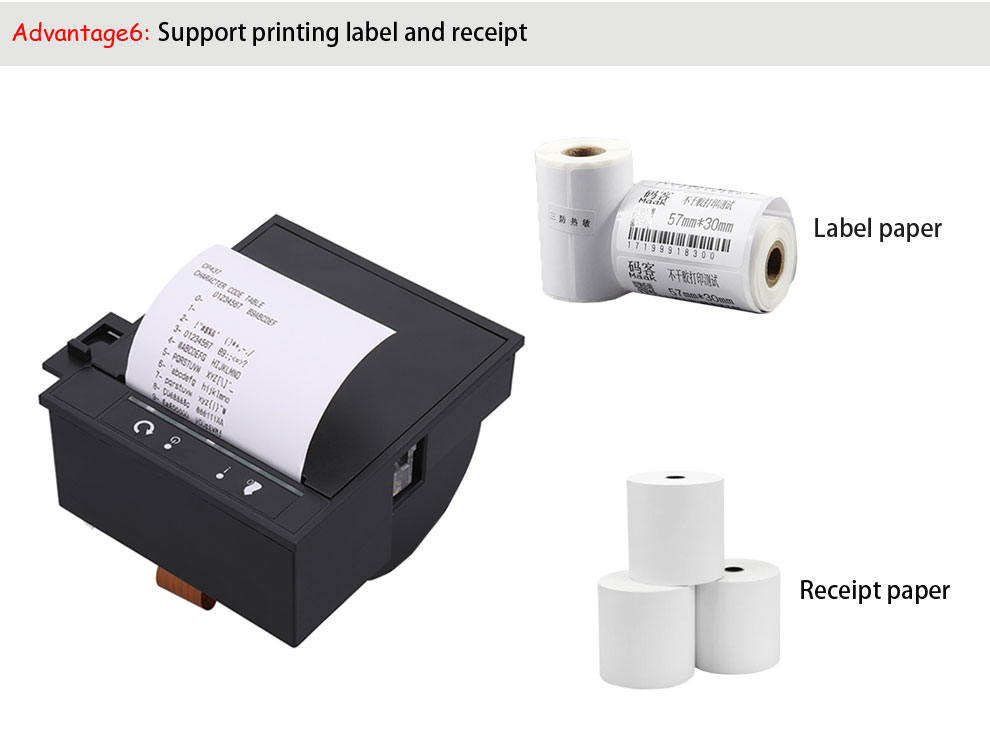

Support receipt and Label sticker paper.
With key to open the printer cover (optional)

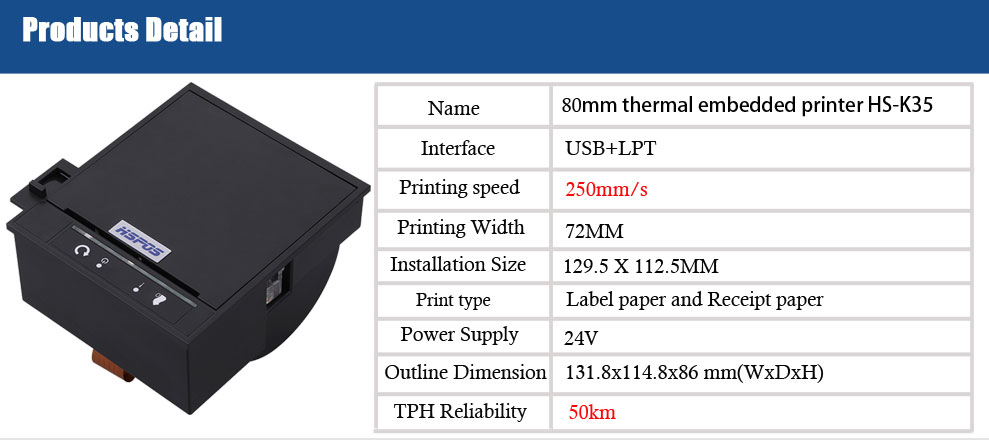

Printing Method | Thermal |
| Name | Panel thermal printer K35 |
Dots/line | 640 dots/line |
Resolution | 203DPI |
Printing Width(mm) | 72mm |
Paper Width(mm) | 80mm |
Paper Thickness(μm) | 56-150 |
Feed Resolution(mm) | 0.125 |
Interface | USB+parallel |

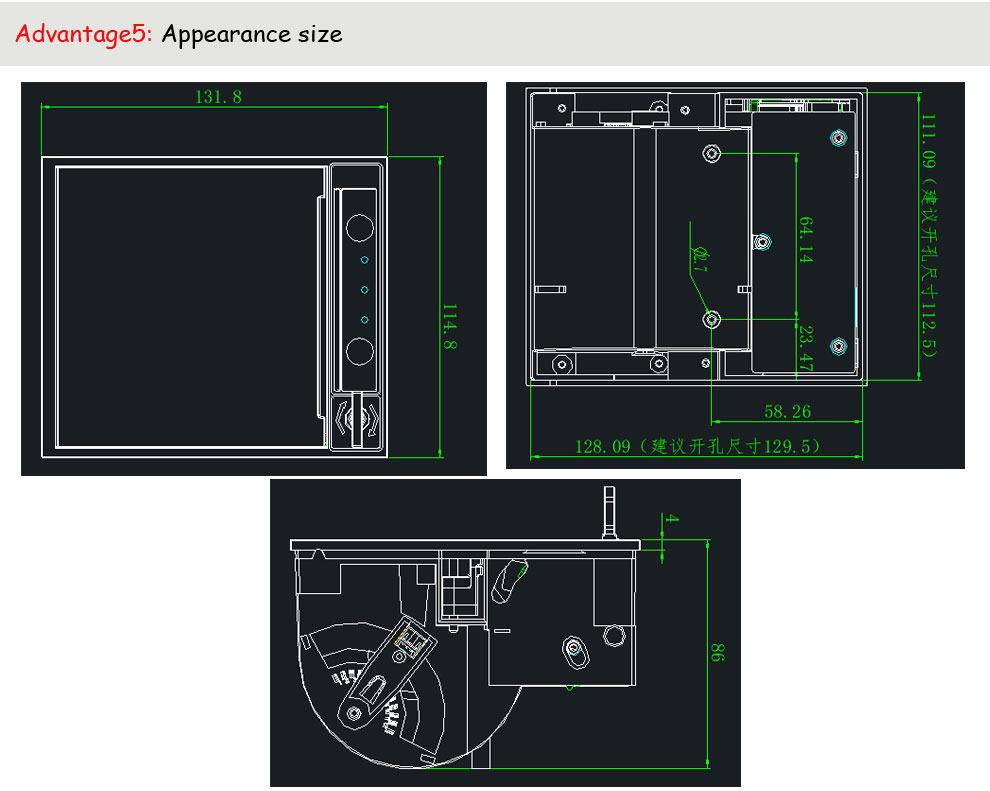

W x D x H(mm) | 131.8*114.8*86mm |
Weight(g) | 532g |
Head temperature detection | Thermistor |
Paper detection | Transmission photoelectricity switch |
Black mark detection | Reflecting photoelectricity pipe |
Platen position detection | Light touch swith |
Operation voltage (V) | 24±10% |
Logical voltage(V) | 5±0.25 |
Formfeeding motor voltage(V) | 24±10% |
Auto cutting motor voltage(V) | 24±10% |
Detection voltage (V) | 5±0.25 |
Abrasion resistance | 100 km |
Auto cutting frequency | 1 million times |
Operating temperature(°C) | 0 to 50 (no condensation) |
Operating humidity(RH) | 10% to 80% (no condensation) |
Storage temperature(°C) | -25 to 70 (no condensation) |
Storage humidity(RH) | 5% to 95% (no condensation) |
