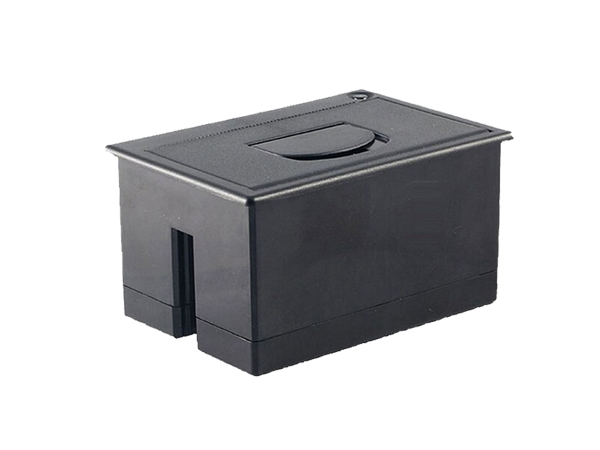

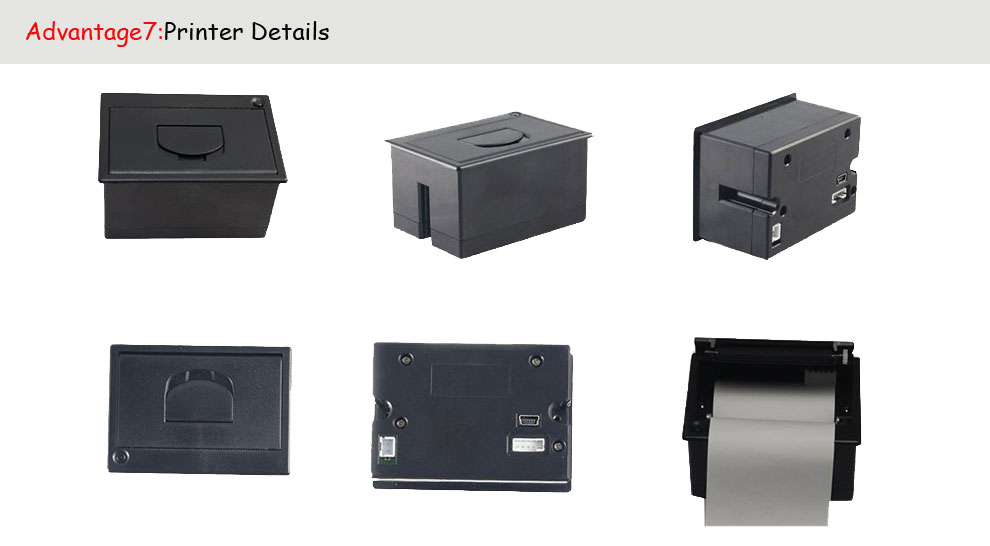

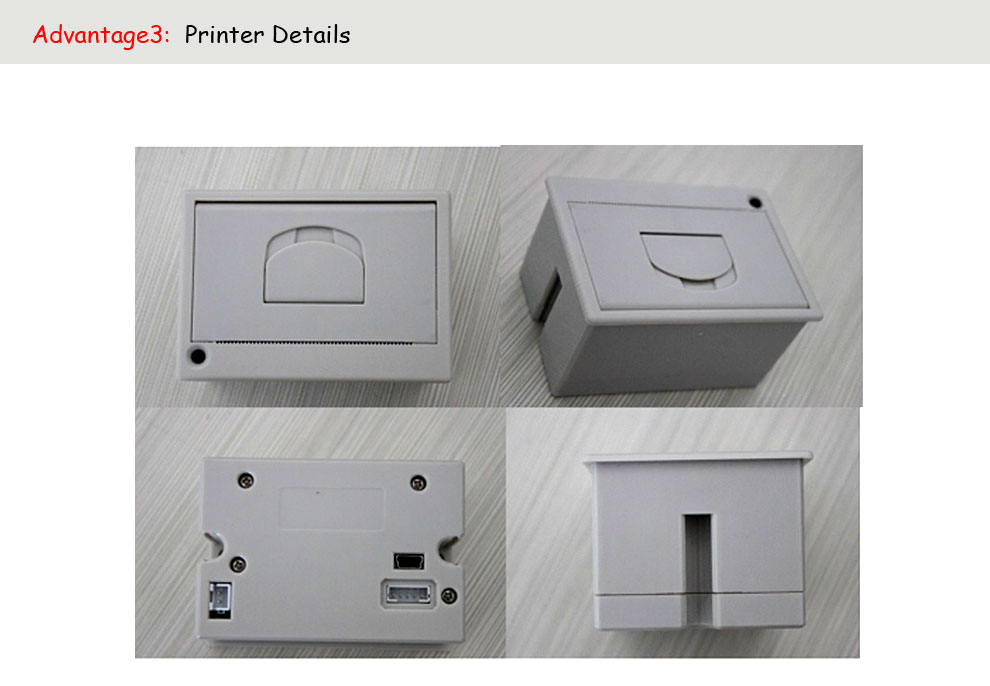

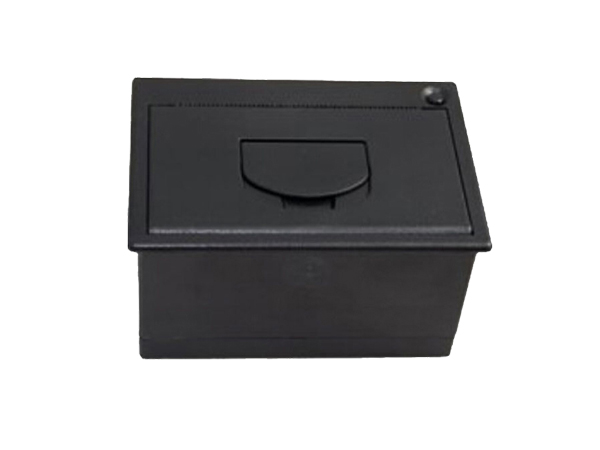

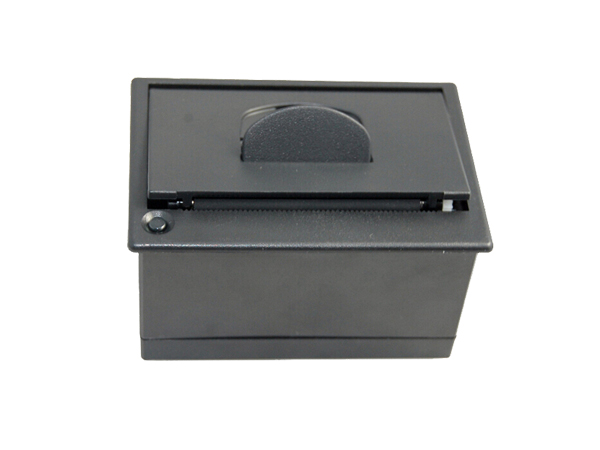

Mini Panel Printer HS-QR24

Mini Panel Printer HS-QR24 Use Thermal printing method

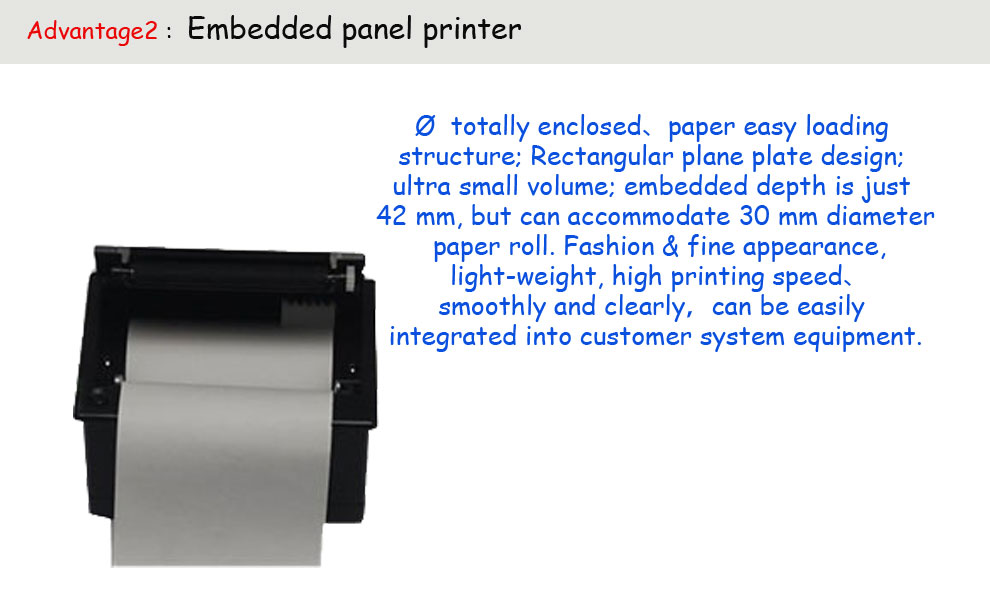

Integrated printing mechanism and circuit, easily embedded to any kinds of instruments and meters

Rich of graphics/curves/characters print function, and can print 24X24 GB2312 Chinese character and 12X24 standard ASCII, and enlarge Chinese font and characters 1-4 times to print.

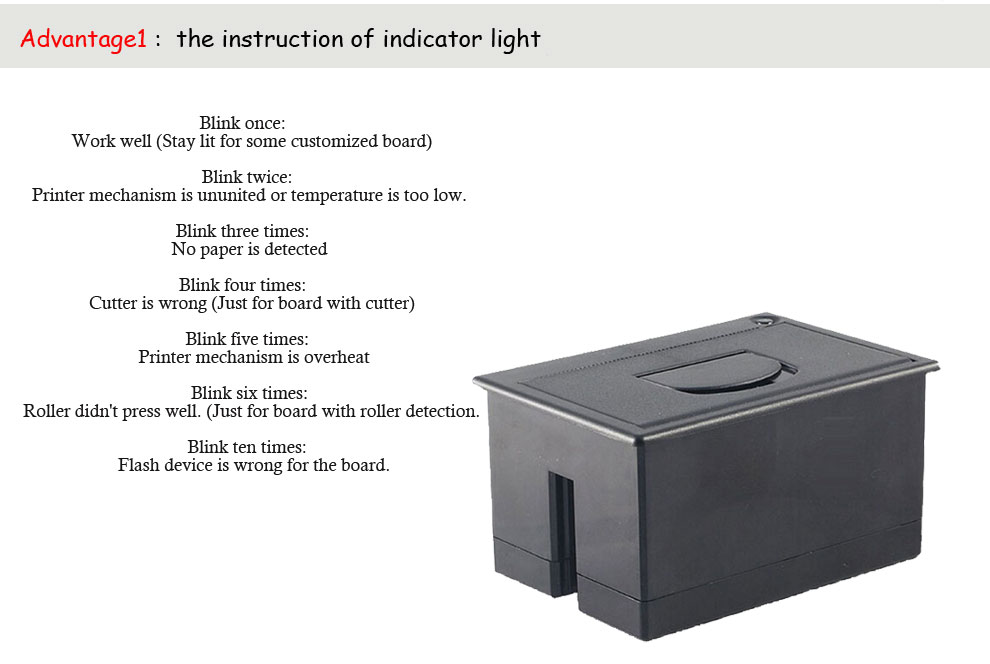

With a self-check function, through indicator light indicates current printer operation statement.

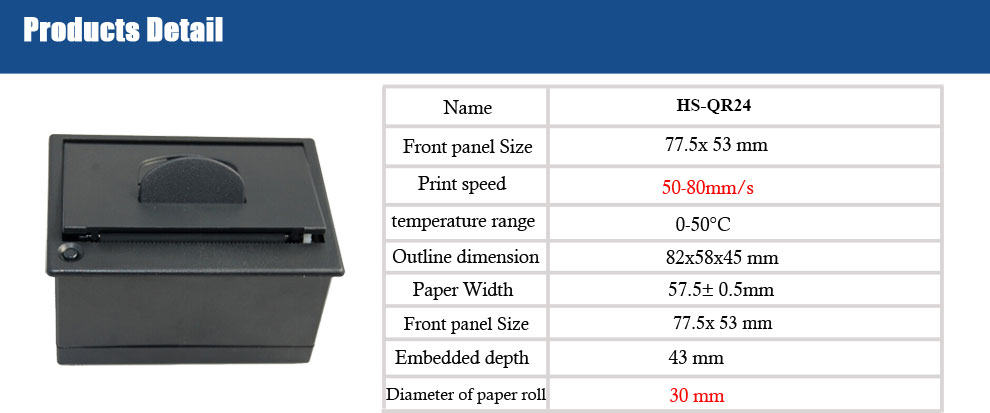

Print speed: 50-80mm/s

Operating voltage range width 5-9V/12V, average current is 3 A

Operating temperature range: 0-50°C

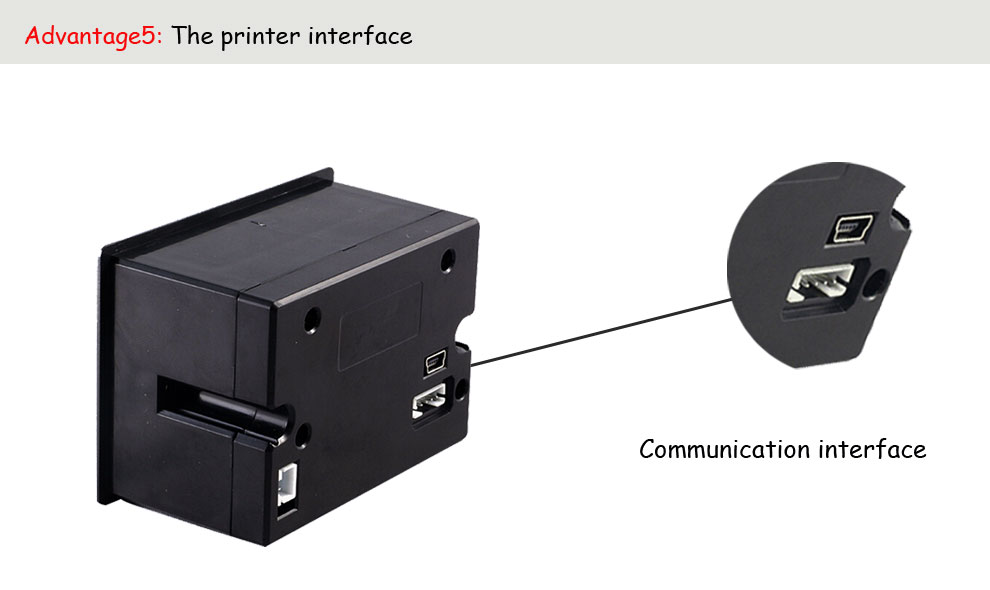

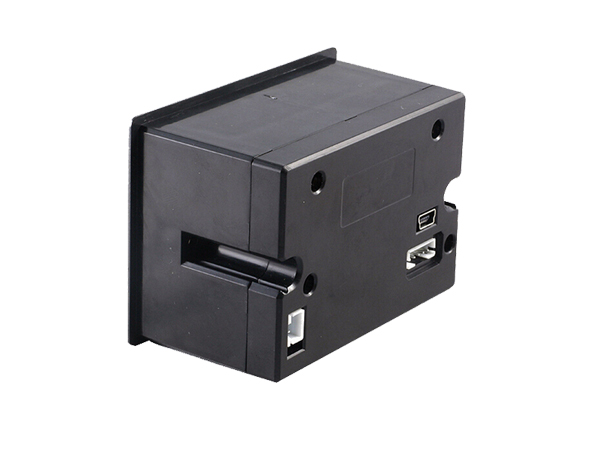

Support RS232 or ttl interface
