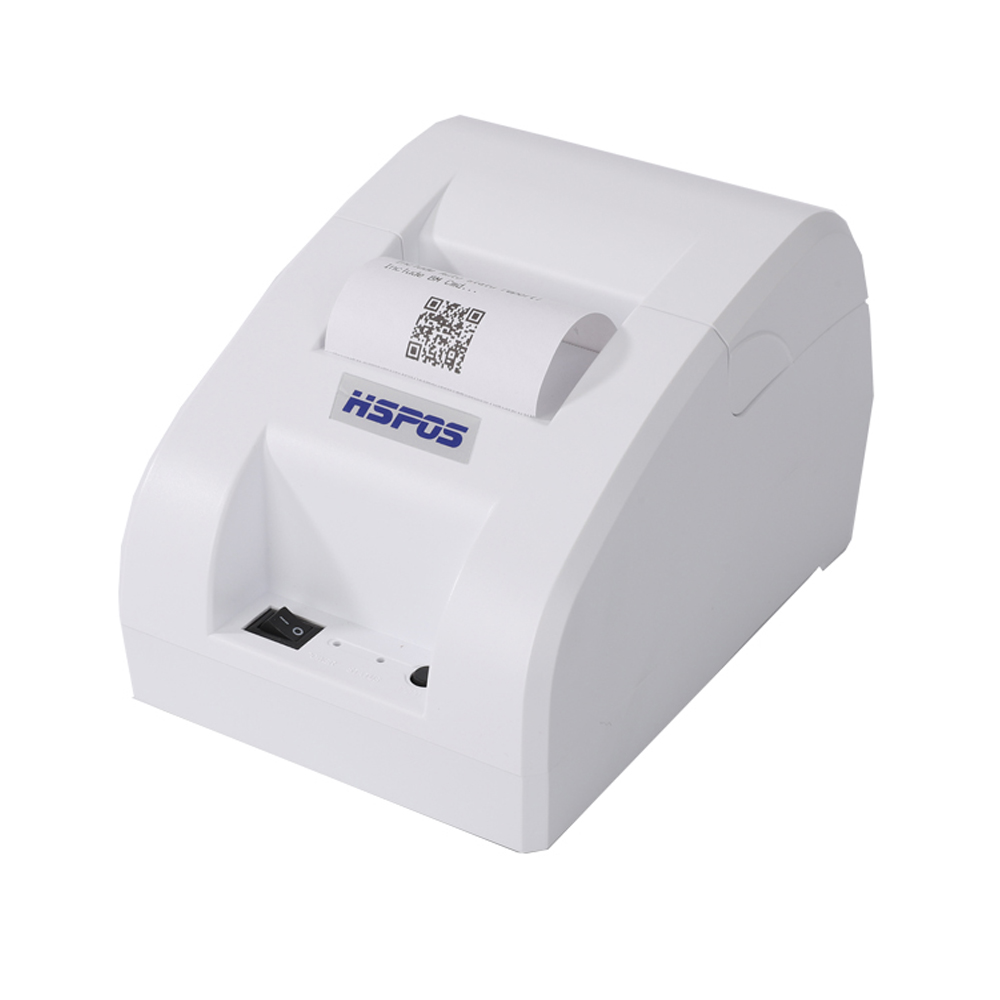

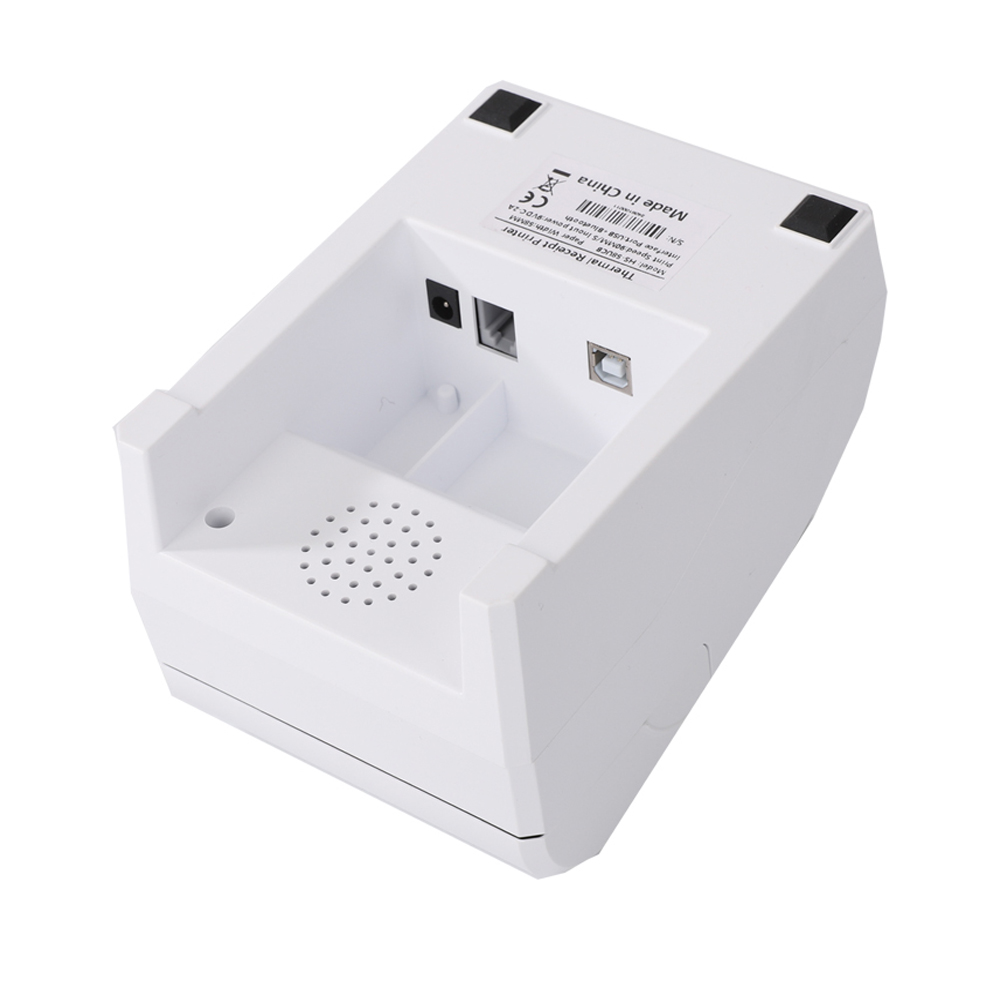

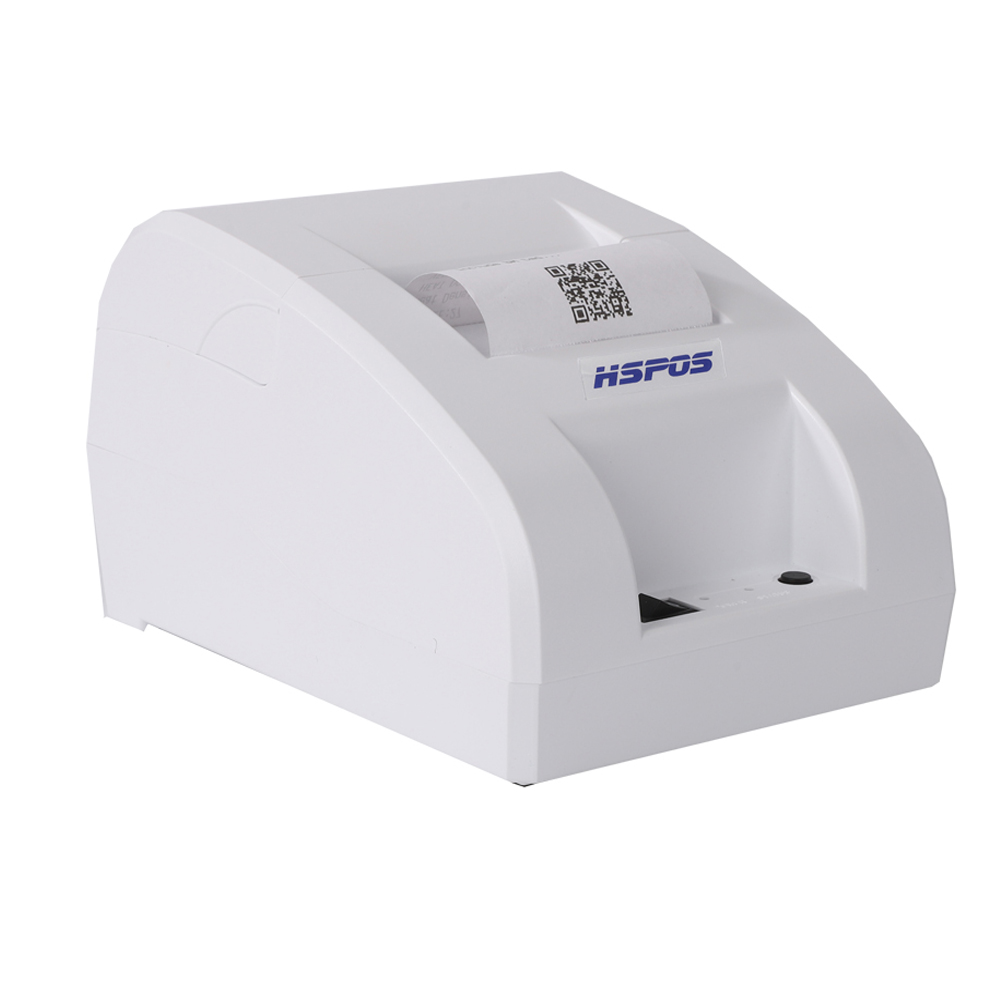

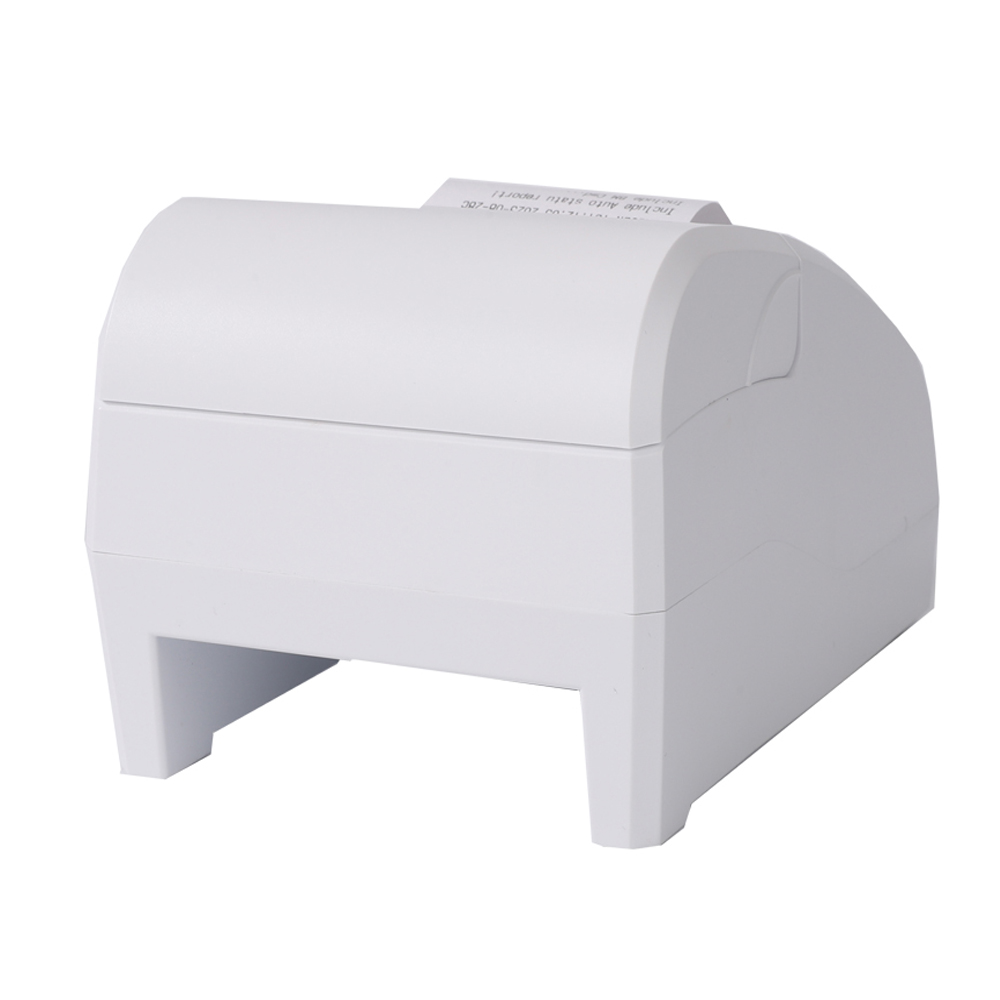

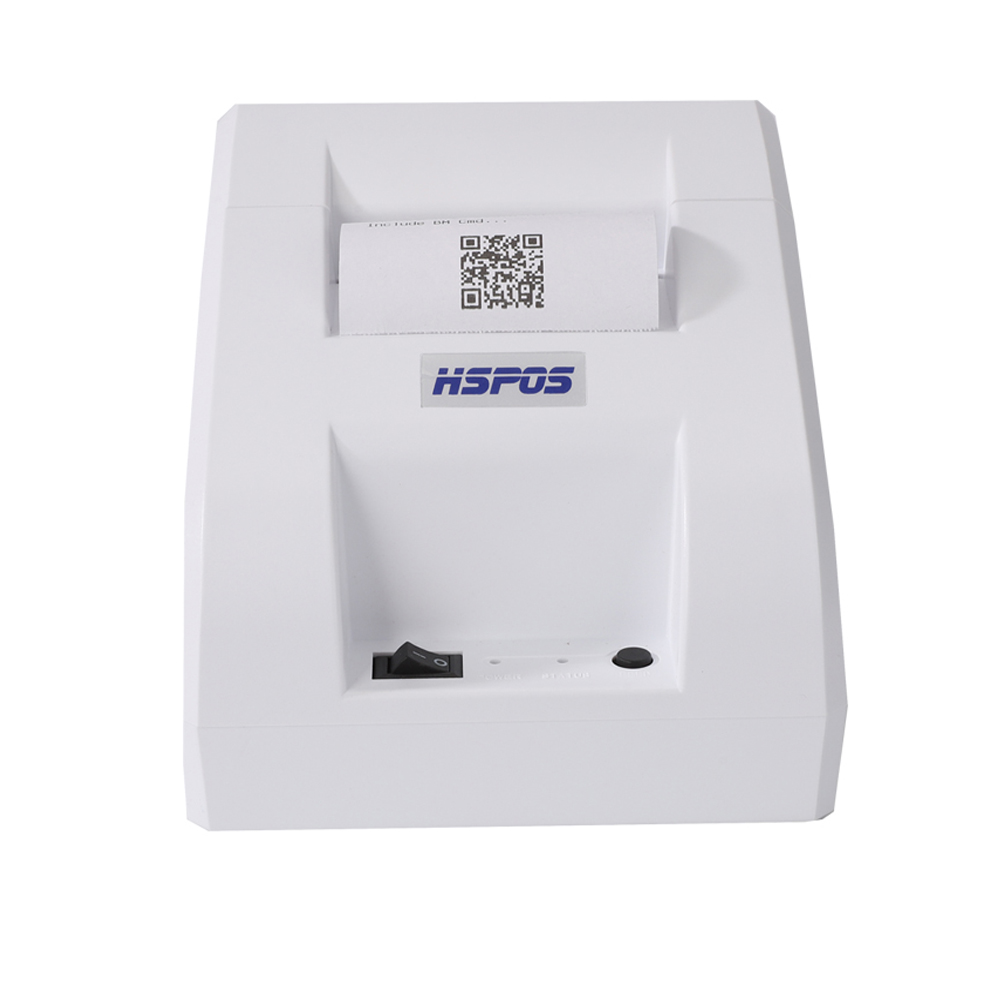

Product Name: Receipt Printer
Model: HS-kl80 Series
With auto-cutter
Low noise and high printing speed
Easy paper loading
Easily use and maintain
Support mark paper and continuous paper printing
With cash drawer interface
Optional communication interfaces(Such as USB, parallel, serial, Ethernet)
Support DHCP Service and Network name Printing.
Optional Wireless communication function(Wi-Fi or Bluetooth, just for special models)
Application

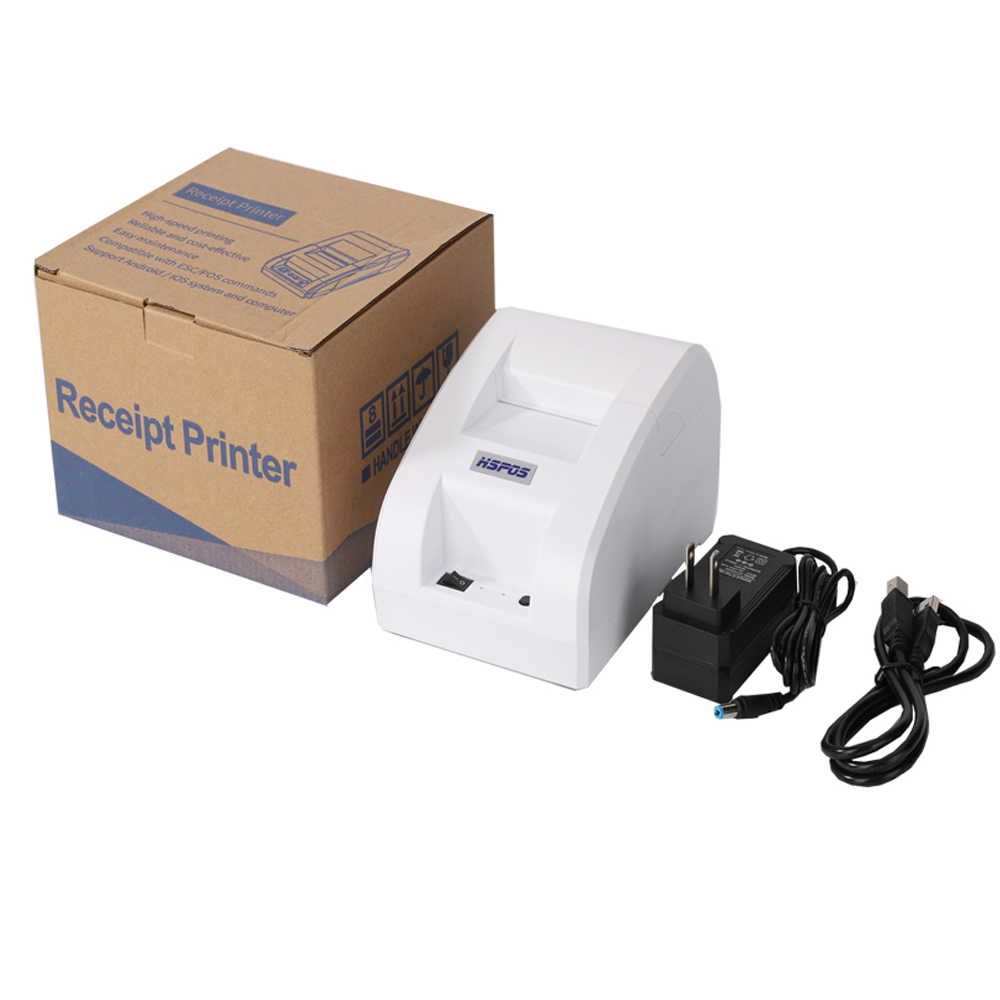

Accessories
Printing method | Direct thermal |
Print width | 72mm |
Column capacity | 384 dots/line |
Printing speed | 100mm/s |
Interface | |
Printing paper | 80±0.5mm×φ80mm |
Line spacing | 3.75mm (Adjustable by commands) |
Column number | 80mm paper: Font A - 32 columns/Font B - 42 columns/ |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots）Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） |
Barcode Character | |
Extension | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）etc…. 26 languages |
Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/ CODE39/ITF/CODABAR/CODE93/CODE128 |
Buffer | |
Input buffer | receive buffer area 1M bytes |
NV Flash | NV bitmap 64K bytes |
Power | |
Power adaptor | Input: AC 110V/220V, 50～60Hz |
Power source | Output: DC 12V/2.6A |
Cash drawer output | DC 12V/2.5A |
Physical characteristics | |
Weight | 0.88KG |
Dimensions | 180×135×135mm (D×W×H) |
Environmental Requirements | |
Work environment | Temperature (0～45) humidity(10～80%) |
Storage environment | Temperature(-10～60℃) humidity(10～80%) |
Reliability | |
Printer head life | 100KM |
Auto cutter | Yes（Optional） |
