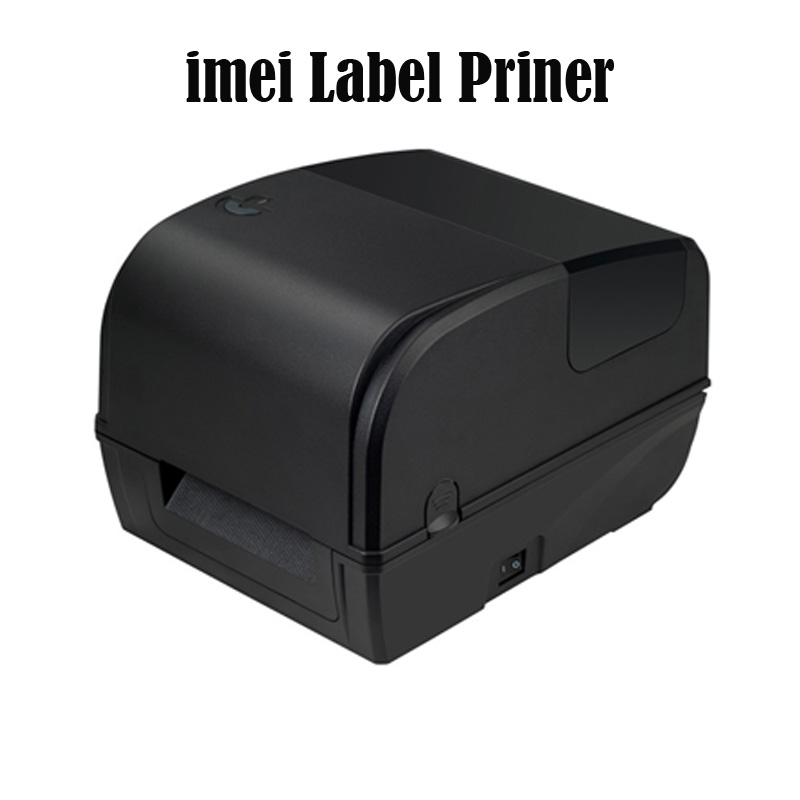

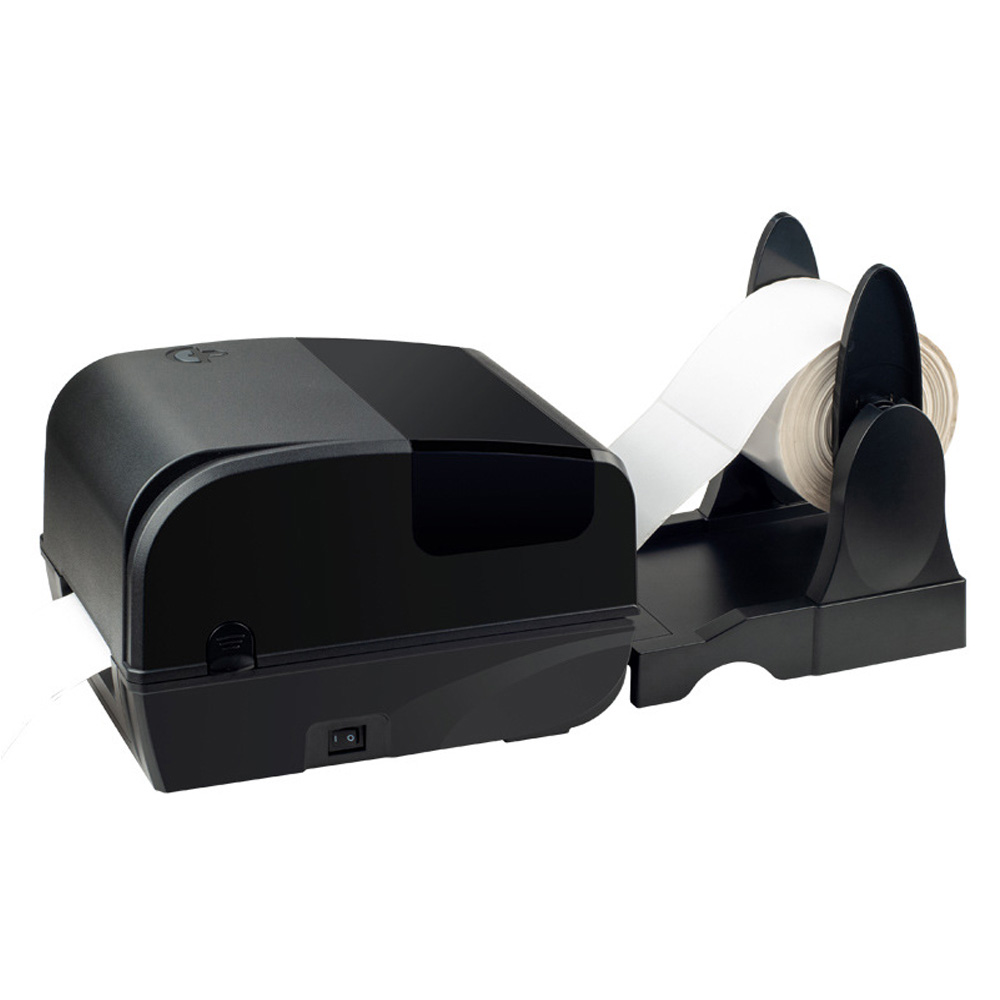

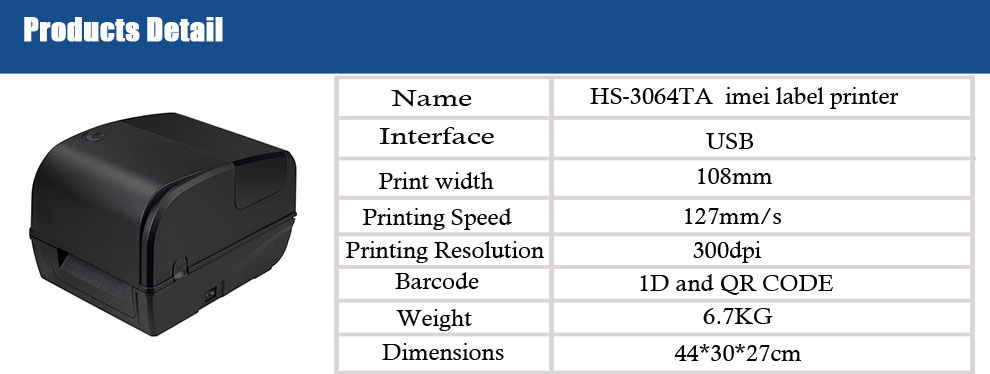

imei label printer

  Printing Resolution

203 dpi (8 dots/mm)

300DPI

  Printing Speed

127 mm (5”) / s Max

101.6 mm (4”) / s  Max.

  Printing Length

1778 mm (70”)

889 mm (35”)

  Printing Width

108 mm (4.25")

  Memory

8MB DRAM, 8MB Flash ROM

  CPU Type

32 bit RISC microprocessor

  Sensors

Reflective sensor x 1 (Movable) & Transmissive sensor x   1(Center fixed)

  Operation Interface

LED Indicator x 2, Button(Feed) x 1

  Communication Interface

USB device, RS-232, Parallel

  1D Barcodes

PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human   readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS)
  PPLB: Code 39、UPC-A、UPC-E、Matrix 2 of 5、UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit   add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container   code) 、Code 128   auto、UCC/EAN   code 128 (GS1-128) 、65 Compact Printer Series - User’s Manual Interleave 2 of 5、Interleaved 2 of 5 with check   sum、Interleaved   2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、UPC Interleaved 2 of 5、EAN-13 2/5 digit add-on、UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)

  2D Barcodes

PPLA/PPLB: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes

  Emulation

TSPL、EPL、ZPL、DPL

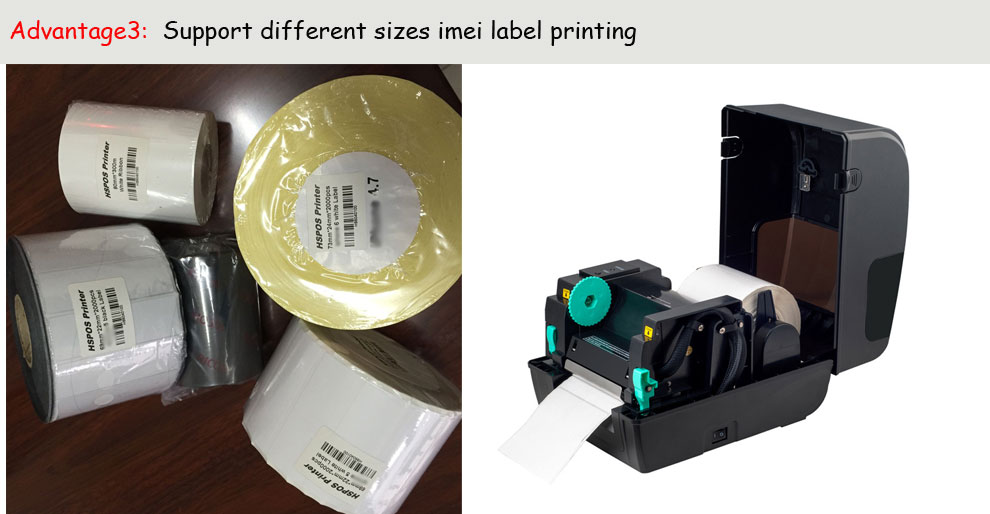

  Media Type

Roll-feed, die-cut, continuous, fan-fold, tags, ticket in   thermal paper or plain paper and fabric label

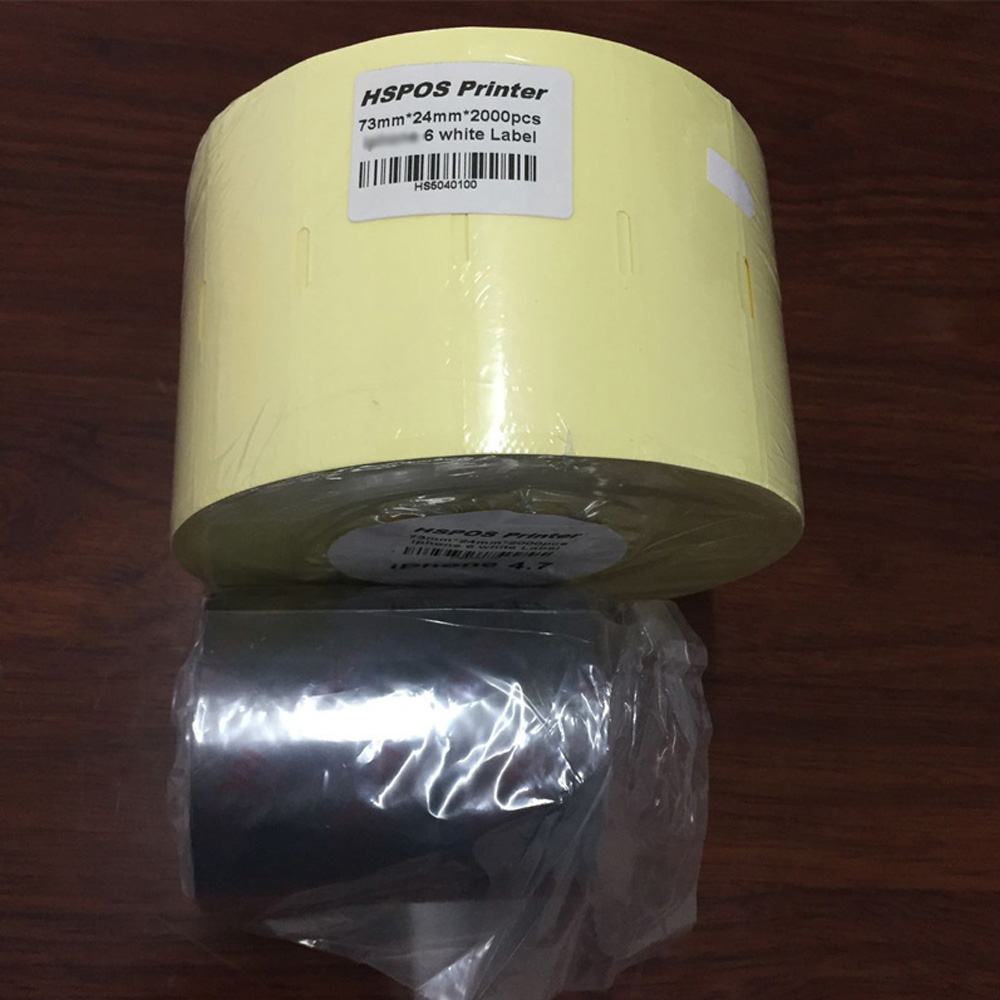

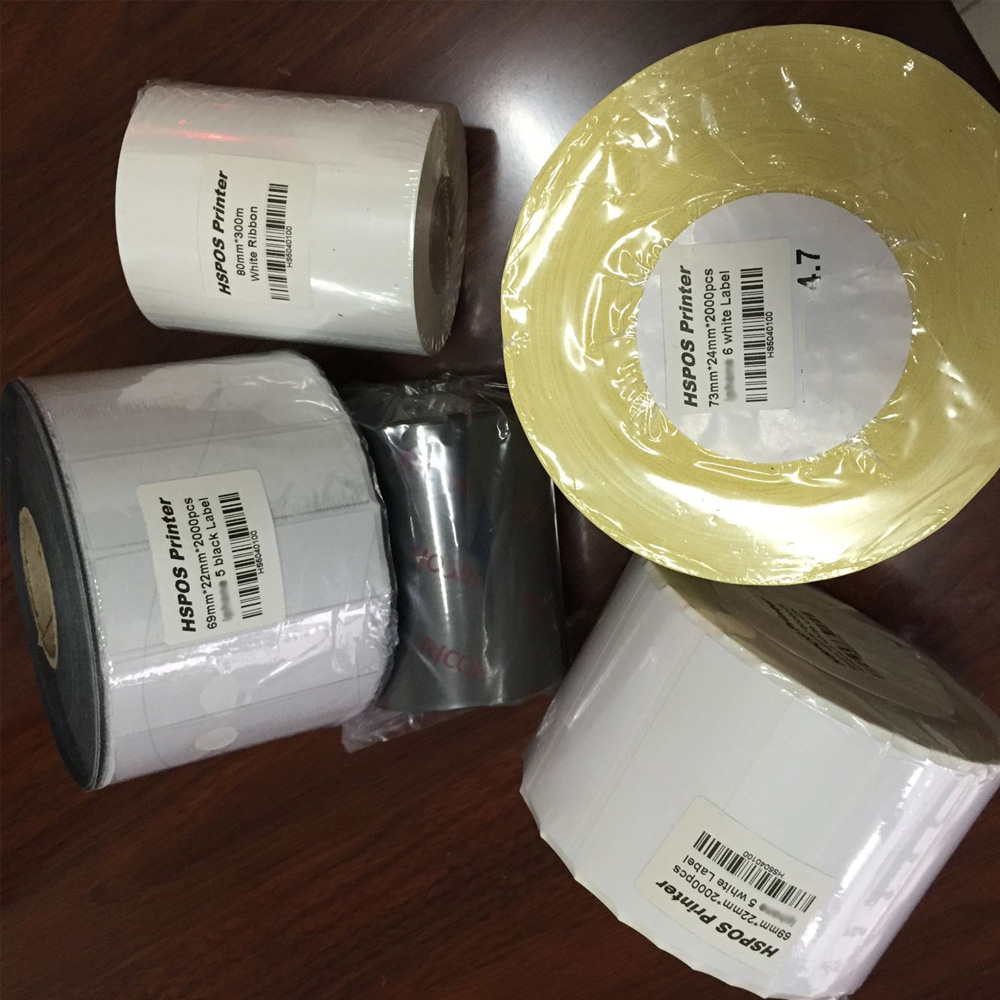

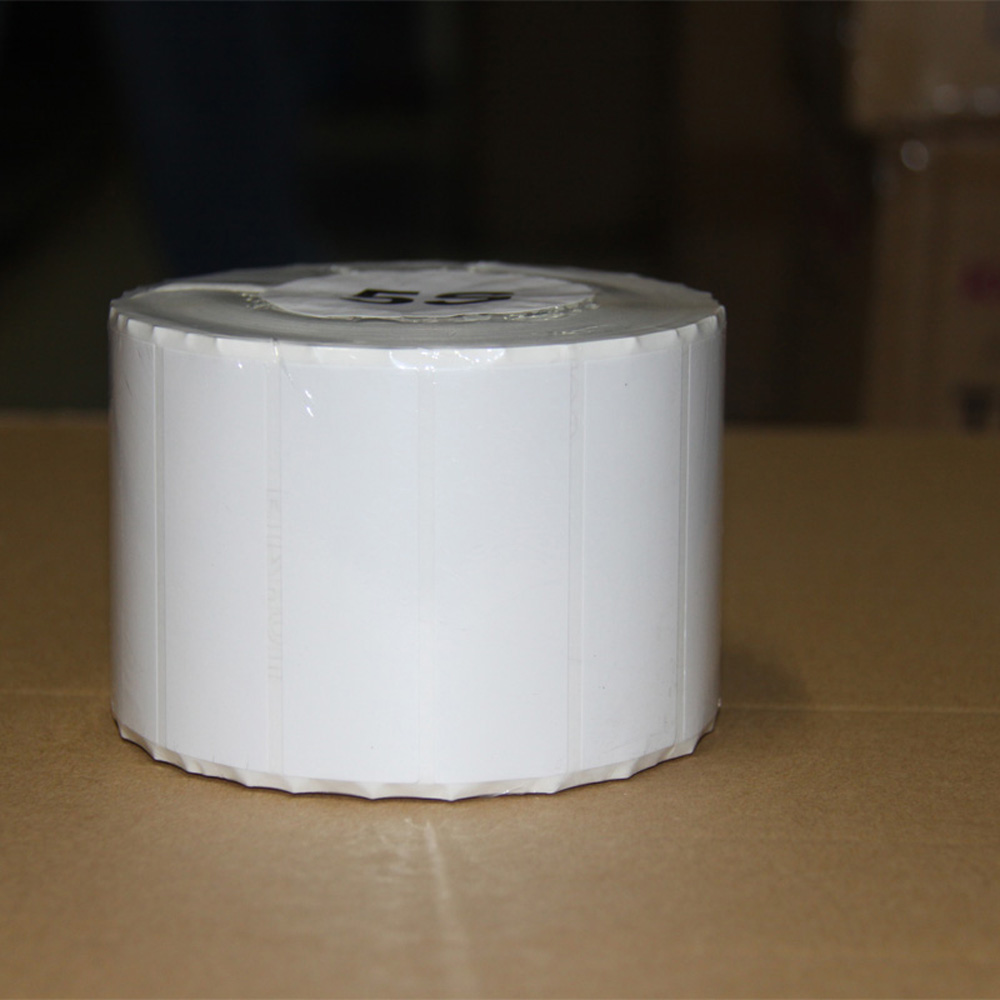

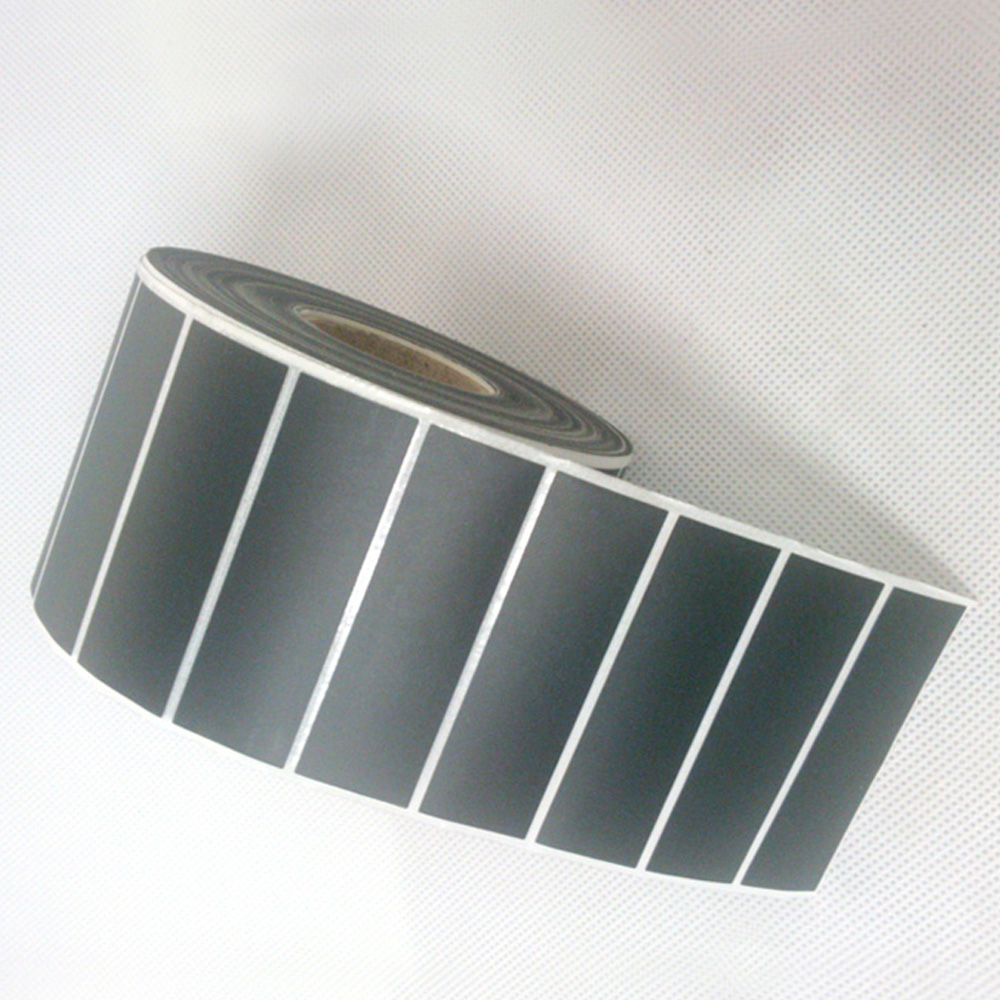

  Media

Max. width 4.3”(110mm) Min. width 1” (25.4 mm) Thickness   0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 5"(127 mm)   Core size 1”(2.54mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size   0.5”(12.7mm) Optional Max. roll capacity (OD): 4.7"(120 mm) Core size   1.5”(38.1mm) Optional

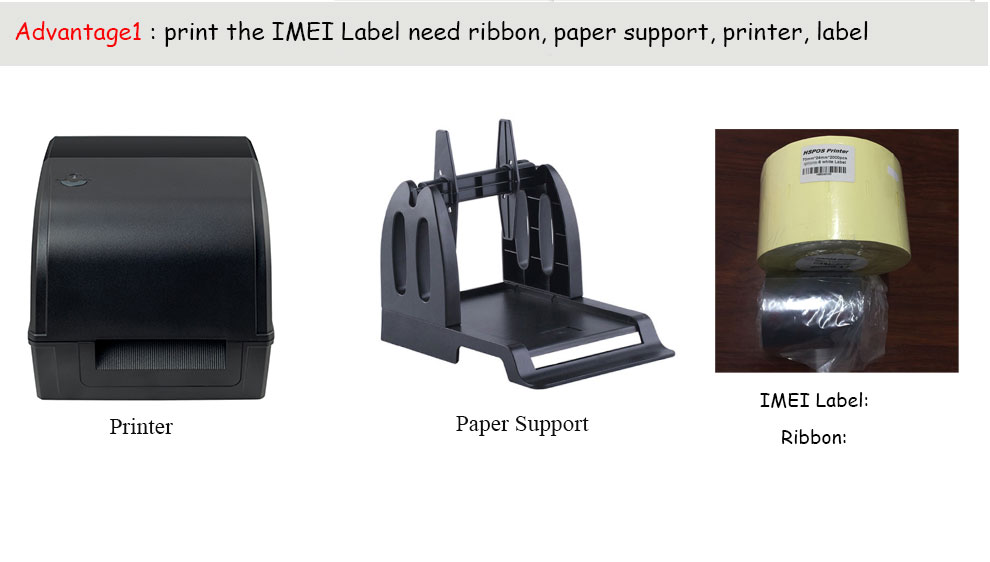

  Ribbon

Ribbon roll – OD: 2.6”(67mm) Ribbon Length: Max. 300m Core size   – ID: 1”(2.54mm) Ribbon Width:1"~4.33"(25.4mm~110mm) Wax,   Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)

  Printer Dimensions

302.5 mm (D) x 234 mm (W) x 195.18 mm (H)

  Printer Weight

2.66 kgs

  Power Source

Universal Switching Power Supply AC Input: 100V~240V, 1.8A,   50~60Hz, DC Output: 24V 2.4A

Factory Options

① Peeler     ② Cutter
