HS-QR702 Series Thermal Receipt Printer
The HS-QR702 is a compact, high-reliability thermal receipt printer designed specifically for embedded POS systems, medical self-service kiosks, pharmacy terminals, and retail checkout devices. Featuring direct thermal printing at speeds of 50–80 mm/s, 48 mm effective print width, and native support for ASCII and GB2312/GBK Chinese fonts (16×16, 24×24 dot matrix), it delivers crisp, silent operation with ultra-low power consumption (DC 5–12 V). Its panel-mount form factor (82×58×45 mm), dual serial interface (RS-232/TTL), paper-out detection, and auto-memory printing ensure seamless integration into space-constrained front panels. With an MCBF of 5 million lines and robust environmental tolerance (5–50°C, 10–80% RH), the HS-QR702 meets stringent requirements for medical, pharmaceutical, and retail point-of-sale applications — including customizable color housings and OEM branding.
Overview
Panel-Mount Thermal Printer for Embedded POS & Medical Kiosks

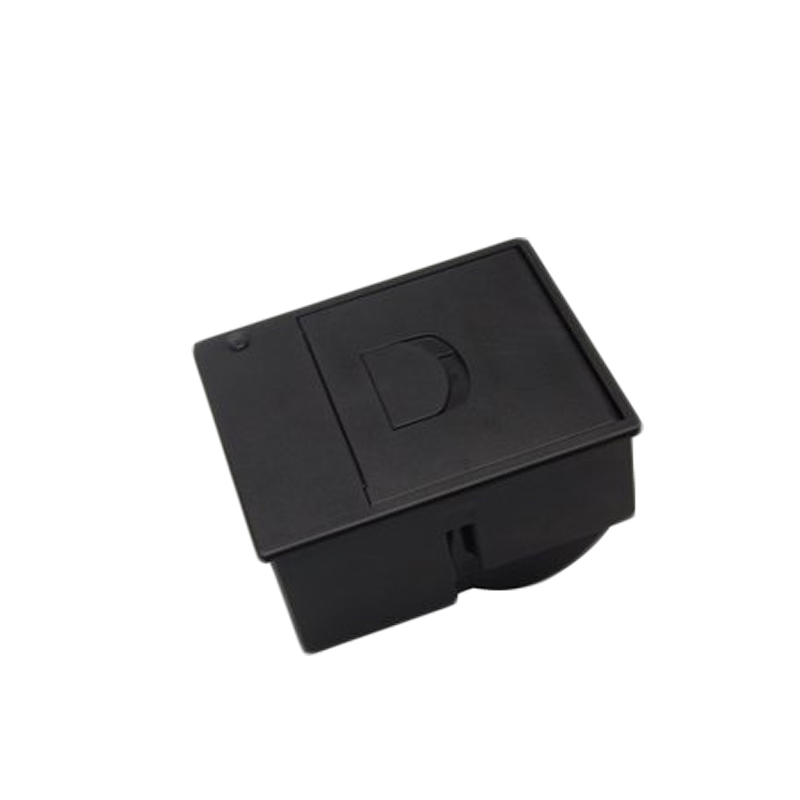

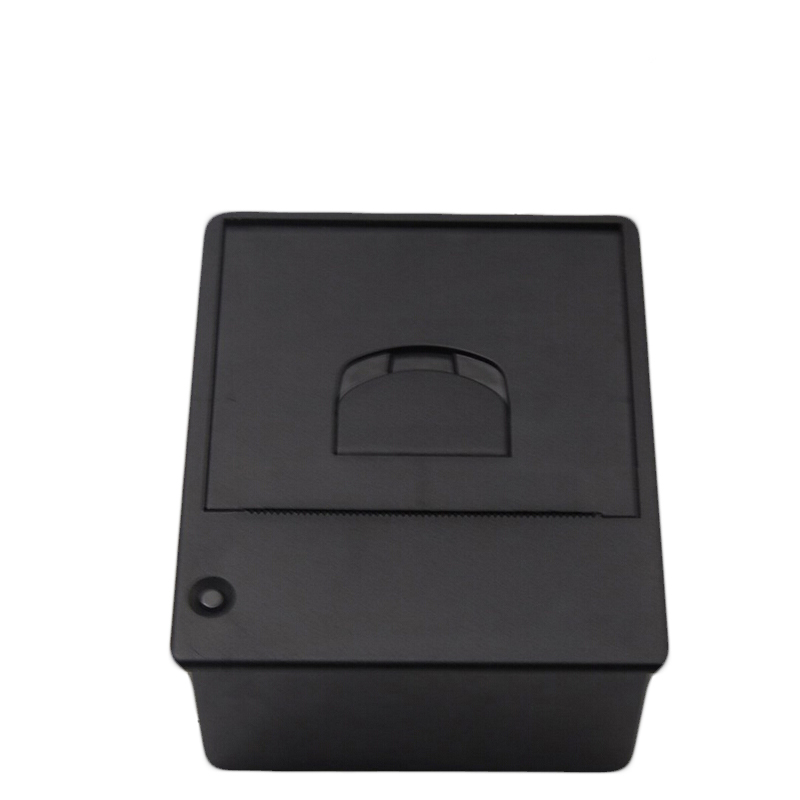

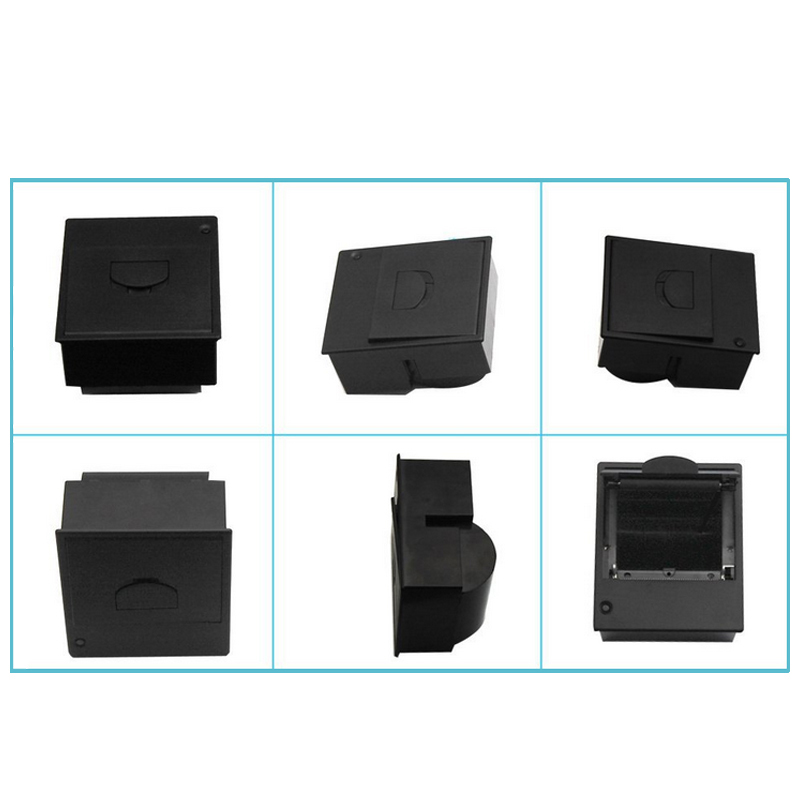

The HS-QR702 is a purpose-built panel-mount thermal receipt printer optimized for front-panel integration in retail POS terminals, hospital self-service inquiry stations, pharmacy dispensing systems, and compact payment devices. Its ultra-slim profile (82×58×45 mm) and precise cutout dimensions (77×53×43 mm) enable secure, flush mounting into metal or plastic enclosures—ideal for certified medical and commercial equipment.
Key Advantages

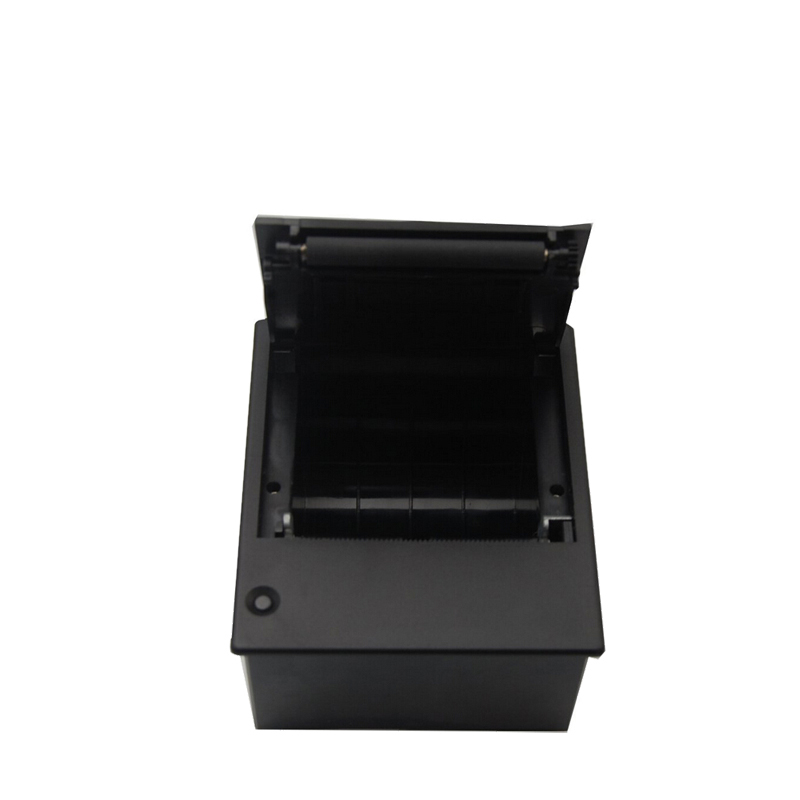

- True panel-mount design: Engineered for front-panel installation with recessed mounting holes, low-profile bezel, and tool-free access to paper compartment.
- Medical & retail ready: Compliant with EN/IEC 60601-1 safety standards (upon request), stable operation across clinical and high-traffic environments.
- Quiet, zero-maintenance printing: Direct thermal method eliminates ribbons, ink, and printhead cleaning—reducing total cost of ownership.
- Bilingual transaction support: Native rendering of ASCII, GB2312-80, and GBK characters ensures accurate Chinese receipts for healthcare, pharmacy, and retail use cases.
- Plug-and-play compatibility: Dual RS-232/TTL interface + ESC/POS command set ensures out-of-the-box integration with Windows, Android, Linux, and embedded controllers.
Standard Accessories & Compatibility
Includes DC power adapter (5–12 V), stainless steel mounting brackets, installation manual, and comprehensive SDKs (Windows, Android, Linux). Fully compatible with standard ESC/POS command sets, widely adopted POS software (e.g., Lightspeed, Square, ShopKeep), and medical terminal platforms.
Tech Specs
| Parameter | Specification |
|---|---|
| Printing Method | Direct Thermal Line Printing |
| Effective Print Width | 48 mm |
| Print Speed | 50 – 80 mm/s |
| Resolution | 8 dots/mm (384 dots/line) |
| Character Sets | ASCII, GB2312-80, GBK |
| Font Support | ANK: 8×16, 9×17, 9×24, 12×24; GBK: 16×16, 24×24 |
| Interface | RS-232 (TTL-level UART compatible) |
| Command Set | ESC/POS compatible |
| Barcode Support | UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF, CODABAR, CODE93, CODE128 |
| Power Input | DC 5 V – 12 V (Adapter included) |
| Physical Dimensions (W×D×H) | 82 × 58 × 45 mm |
| Installation Cutout Size | 77 × 53 × 43 mm |
| Net Weight | 180 g |
| Operating Environment | 5°C – 50°C, 10% – 80% RH |
| Storage Environment | −20°C – 60°C, 10% – 90% RH |
| MTBF (MCBF) | 5,000,000 lines |
| Paper Specifications | Thermal paper, 57.5 ± 0.5 mm width, max. roll diameter 50 mm |
