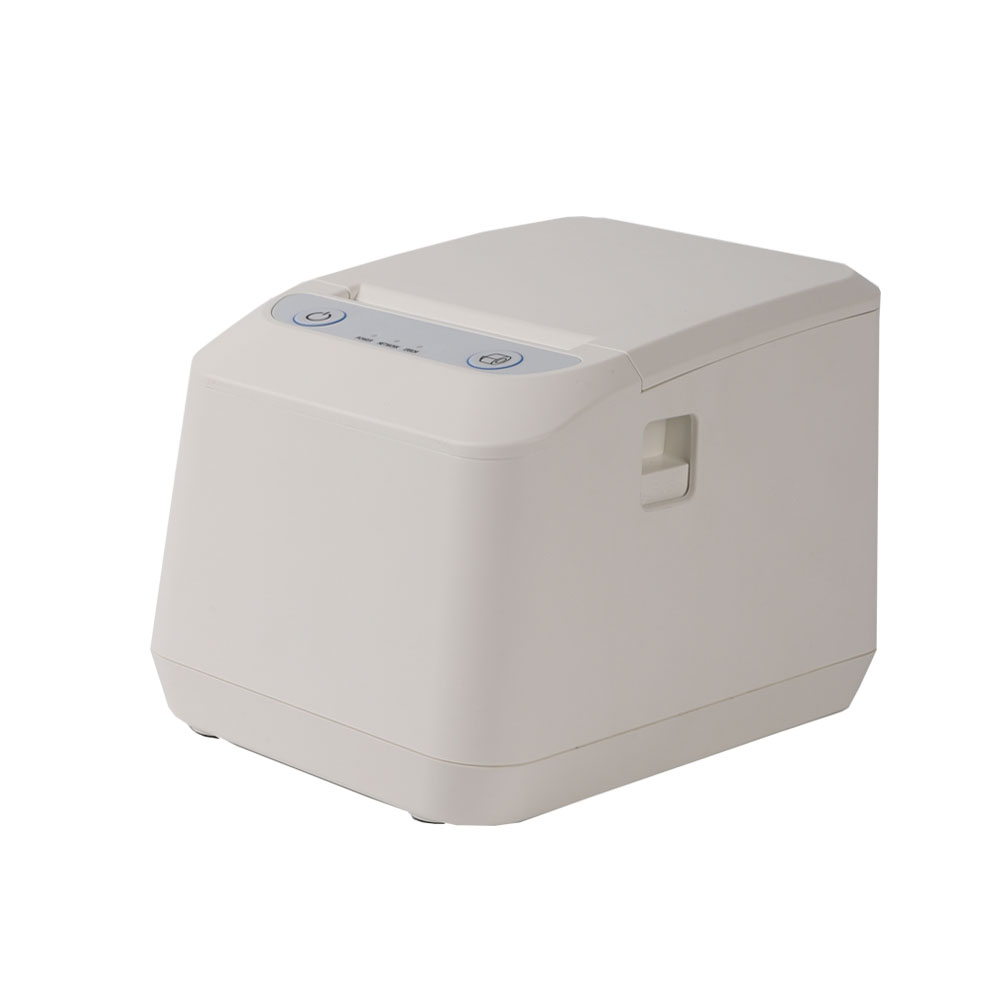

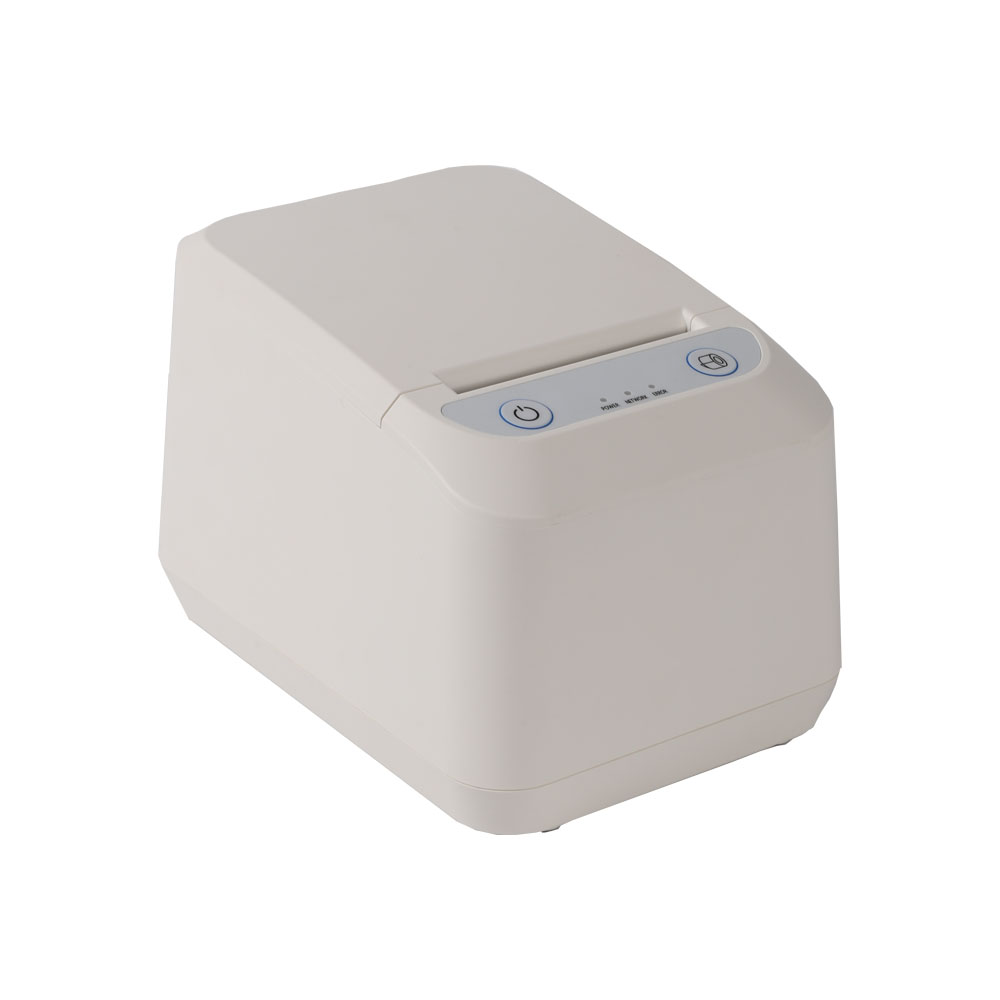

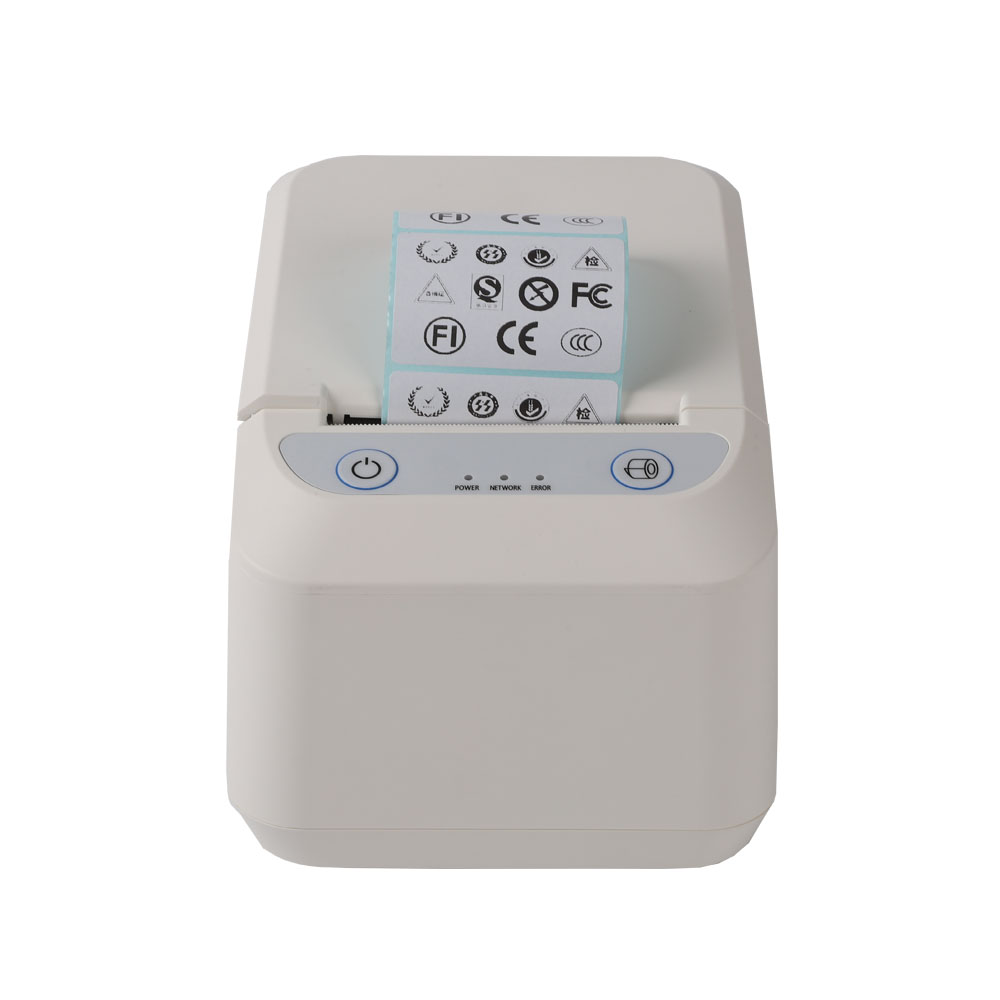

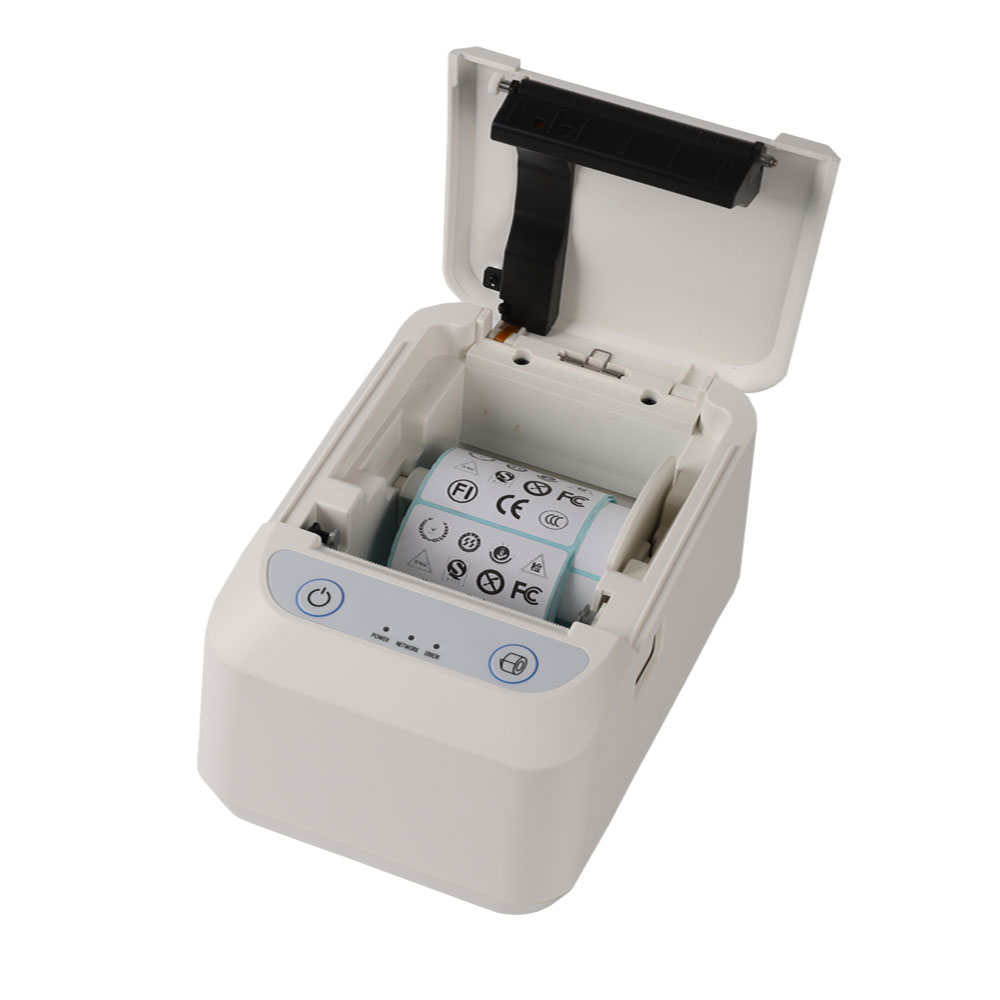

HSPRINTER HS-E81 Cloud Series Thermal Receipt & Label Printer
The HSPRINTER HS-E81ULW is a high-performance, multi-interface thermal printer engineered for modern retail and kiosk environments. Supporting USB, LAN, Wi-Fi, and Bluetooth connectivity, it enables seamless integration into POS systems, self-service kiosks, and cloud-based printing infrastructures. With native support for ESC/POS, TSPL, and CPCL command sets — plus MQTT and WebSocket protocols — it delivers reliable, low-latency cloud printing. It prints at speeds up to 90 mm/s on 80 mm wide thermal paper (72 mm printable width), supports QR codes, 1D/2D barcodes, multilingual text (including Chinese), downloadable logos, and TTF font rendering. Built-in DHCP, OPOS drivers, and cross-platform compatibility (Windows, Linux, macOS) make deployment fast and scalable.
Overview
Powering Next-Gen Retail & Kiosk Printing
The HSPRINTER HS-E81ULW is purpose-built for demanding commercial environments — from point-of-sale counters and food delivery hubs to interactive kiosks and cloud-managed logistics terminals. Its dual-role capability as both a receipt and label printer maximizes ROI and simplifies hardware consolidation.
Key Advantages
- Cloud-Ready Architecture: Native MQTT and WebSocket support enable real-time remote printing, status monitoring, and firmware updates over public or private clouds.
- Universal Compatibility: Full ESC/POS, TSPL, and CPCL emulation ensures plug-and-play integration with major POS platforms (e.g., Lightspeed, Square, Toast) and label software (e.g., NiceLabel, Bartender).
- Flexible Development: SDKs and sample code for Java, C++, C#, JavaScript accelerate custom app development; OPOS drivers ensure Windows-based legacy system support.
- Smart Connectivity: Gigabit Ethernet + Wi-Fi 4 (802.11n) + Bluetooth 4.2 + optional 4G module deliver redundancy and mobility without compromise.
- Rich Media Support: Downloadable bitmap logos, adjustable line spacing (3.75 mm), TTF font loading, and bilingual/multilingual character rendering including Simplified & Traditional Chinese.

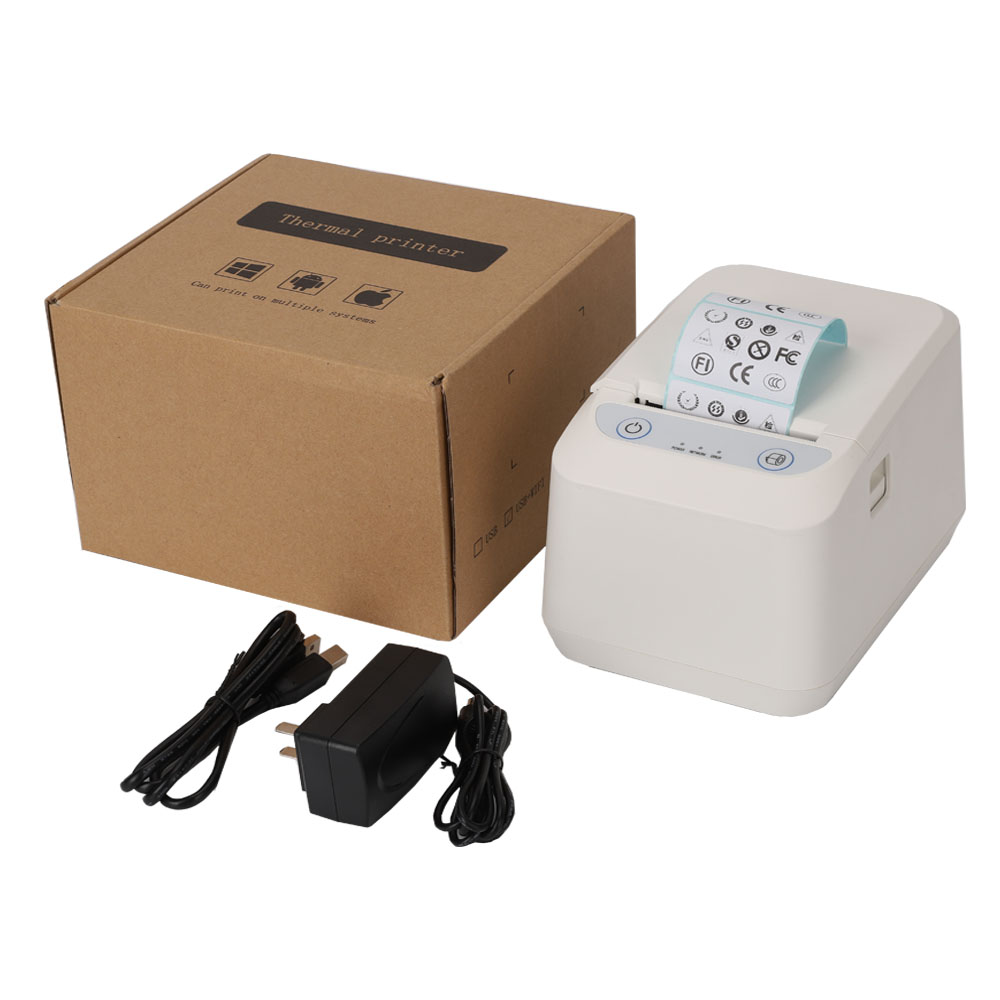

Standard Accessories Included
- 1 × DC 8.5V/3A power adapter
- 1 × USB 2.0 data cable (1.5 m)
- 1 × 79.5 mm × Ø80 mm thermal paper roll (test roll)
- 1 × AC power cord (IEC C5)
Tech Specs
| Parameter | Specification |
|---|---|
| Printing Method | Direct Thermal |
| Print Width | 72 mm (effective) |
| Print Speed | 50–90 mm/s (adjustable) |
| Interfaces | USB 2.0, 100M Ethernet, Wi-Fi 4 (802.11n), Bluetooth 4.2, Optional 4G |
| Command Set | ESC/POS, TSPL, CPCL |
| Barcode Support | UPC-A/E, JAN13/8, CODE39, ITF25, CODABAR, CODE93, CODE128, QR Code, PDF417, DataMatrix, Aztec, MaxiCode, GS1 variants |
| Font Support | ANK Font A (12×24), Font B (9×17), Chinese (24×24), TTF font loading via host |
| Power Input | AC 110–220 V, 50–60 Hz → DC 8.5 V / 3 A output |
| Dimensions (D×W×H) | 187 × 135 × 128 mm |
| Net Weight | 1.60 kg |
| Operating Environment | 0–45°C, 10–80% RH (non-condensing) |
| Storage Environment | −10–60°C, 10–80% RH |
| Printhead Life | ≥100 km (at 50 mm/s, 20% duty cycle) |
