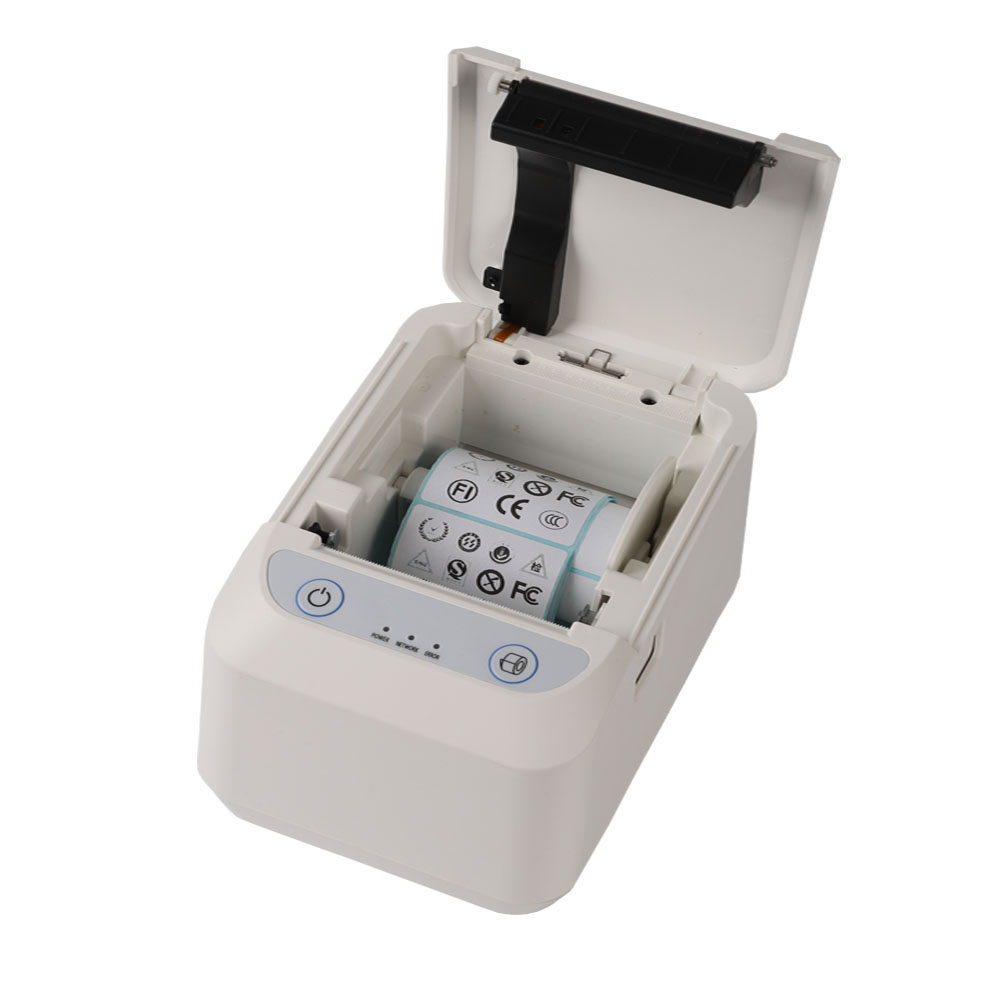

u Support 80MM large diameter roll;
u Using 100M Ethernet card, connect printer faster,
u Support LOGO Graphical download and print;
u Support 1D,2D bar code printing;
u Support Multi language printing

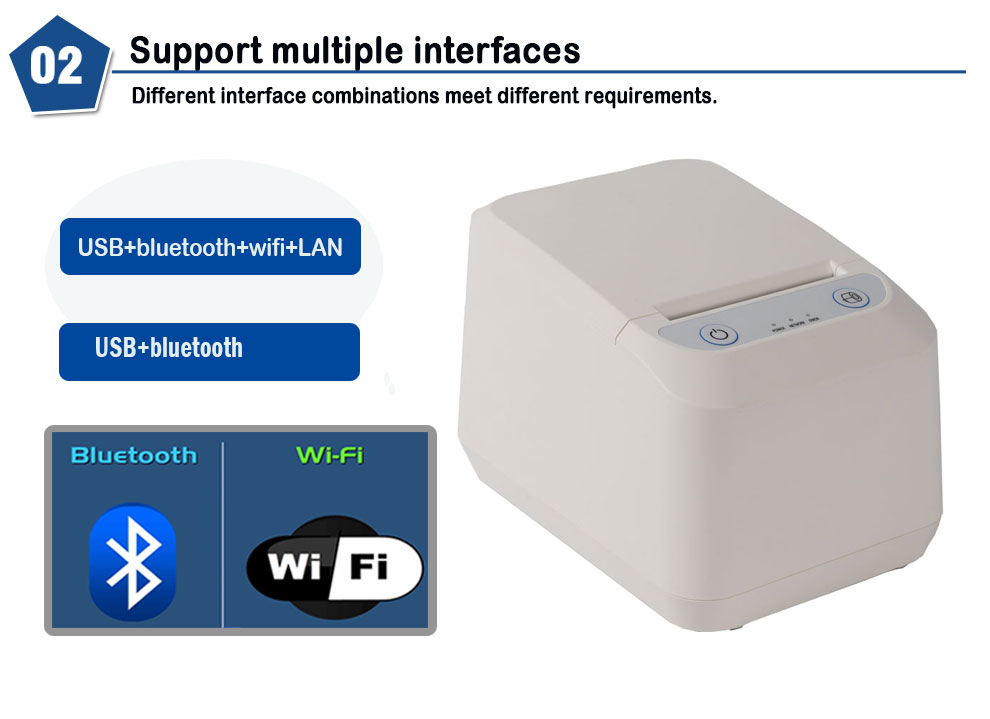

u interface: USB+LAN+Bluetooth+WIFI
u Compatible with ESC/POS, TSPL,CPCL commands
u Support OPOS Drivers
u Support MQTT protocol and web socket Protocols
u With Voice broadcast can be customized.
u Support windows, Linux, Mac drivers Printing
u Built in DHCP Servers, can get the ip address automatically
u Support Multiple developing language, Java, C++,C#, JS etc, easy to SDK.

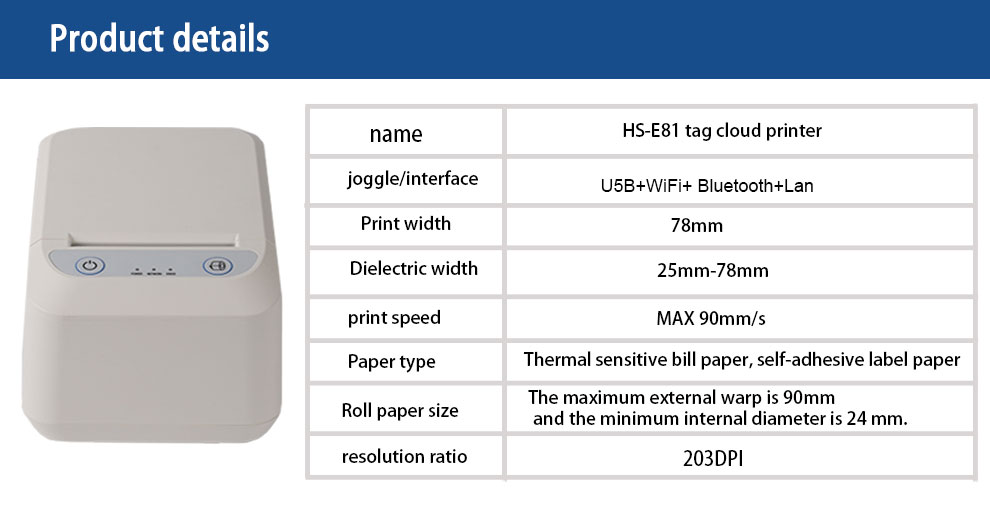

Printing method | Direct thermal |
Print width | 72mm |
Column capacity | 576 dots/line 512 dots/line |
Printing speed | 50-90mm/s |
Interface | USB/ LAN/ Bluetooth/WIFI/4G |
Printing paper | 79.5±0.5mm×φ80mm |
Line spacing | 3.75mm (Adjustable by commands) |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots）Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）Support TTF fromat font |
command | ESC POS/TSPL/CPCL |
Barcode Character | |
Barcode types | UPC-A/UPC-E/JAN13/JAN8CODE39/ITF25 /CODABAR/CODE93/CODE128/POSTAL/ PLESSEY/MSI/GS1 QRCode/PDF417/DATAMATRIX/AZTEC /MAXICODE/GS1 (optional） |
2D code | QR Code |
Buffer | |
detection | Temperature detection， paper detection，printer head detection |
Power | |
Power adaptor | Input：AC 110V/220V, 50～60Hz |
Power source | Output：DC 8.5V/3A |
Physical characteristics | |
Weight | 1.60KG |
Dimensions | 187mm*135mm*128mm (D×W×H) |
Environmental Requirements | |
Work environment | Temperature (0～45) humidity(10～80%) |
Storage environment | Emperature(-10～60℃) humidity(10～80%) |
Reliability | |
Printer head life | 100KM |
